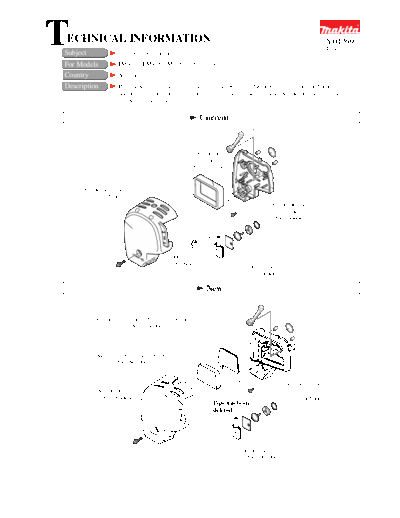

Y04269-WW-1


>> Download Y04269-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject            Change of Air Cleaner
                                                                                                            Y04269
                                                                                                            (Page 1 of 2)

For Models         EM4250, EM4251, MS250.4, MS251.4
Country            All countries
Description        Parts of Air cleaner have been changed to improve the dustproofness as illustrated below.
                   See page 2 of the illustrations for the differences of Cleaner plate, Air cleaner plate complete,
                   and Air cleaner cover.

                                                       Current



                                                    Air cleaner
                                                     element
                                                  (5923503200)


     Air cleaner cover
      (5923502700)
                                                                                   Air cleaner plate
                                                                                       complete
                                                                                    (5923006002)




                                         Pipe
                                     (5923503900)                        Cleaner plate
                                                                         (5923004003)

                                                        New


          Air cleaner element (Felt) has been added.
                        (5933500900)



          Air cleaner element (Sponge)
                  (5933501200)


                                                                                            Air cleaner plate
          Air cleaner cover                                                                     complete
           (5933500800)                                                                      (5933005000)
                                                           Pipe has been
                                                           deleted.




                                                                      Cleaner plate ass'y
                                                                        (5933001000)
                                                                                                         Y04269
The differences of Cleaner plate, Air cleaner plate complete, and Air cleaner cover                     (Page 2 of 2)
                       Current                                                     New




                      Cleaner plate                                         Cleaner plate ass'y
                     (5923004003)                                             (5933001000)




              Air cleaner plate complete                                 Air cleaner plate complete
                    (5923006002)                                               (5933005000)




                 Air cleaner cover                                           Air cleaner cover
                  (5923502700)                                                (5933500800)

Interchangeability(I/C)
      Item No.           Current part                Q'ty I/C        New part                 Q'ty        Note
EM4250, MS250.4: 153 Cleaner Plate                              Cleaner Plate Ass'y
                                                       1   No                                     1
EM4251, MS251.4: 151 5923004003                                 5933001000
                     Air Cleaner Plate                          Air Cleaner Plate
EM4250, MS250.4: 154
                     Complete                          1   No   Complete                          1
EM4251, MS251.4: 152
                     5923006002                                 5933005000
EM4250, MS250.4: 166 Air Cleaner Cover                          Air Cleaner Cover
                                                       1   No                                     1   Interchangeable
EM4251, MS251.4: 164 5923502700                                 5933500800
                                                                                                           as a set
EM4250, MS250.4: 214                                            Air Cleaner Element
                                                                5933500900                        1
EM4251, MS251.4: 212
EM4250, MS250.4: 160 Air Cleaner Element                        Air Cleaner Element
                                                       1   No                                     1
EM4251, MS251.4: 158 5923503200                                 5933501200
EM4250, MS250.4: 210 Pipe
                                                       1
EM4251, MS251.4: 208 5923503900

Implementation
EM4250, EM4251: From Aug., 2002 production.
MS250.4, MS251.4: From Sep., 2002 production.
