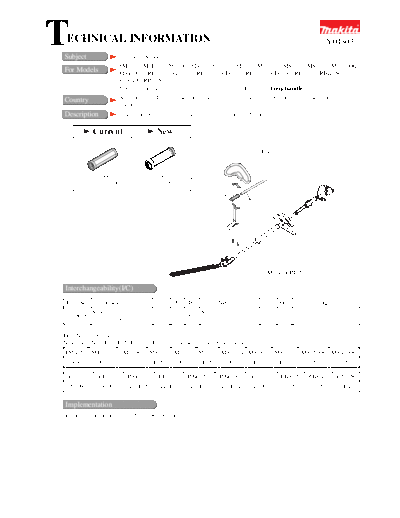

Y04303-WW-1


>> Download Y04303-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject              Change of Spacer
                                                                                                            Y04303

                     EM4251, MH2556, MS20C, MS221, MS2501, MS251, MS251.4, MS2810, MS3210, MS3500K,
For Models           MS4200K, RBC201, RBC221, RBC226, RBC251, RBC256, RBC281, RBC321, RBK350,
                     RBK420, RPT250
                     Note: This technical information applies to the products with Loop handle.

Country               All countries. (This technical information doesn't apply to the products with bike handle or
                      J handle.)
Description          Spacer for loop handle has been changed as illustrated below.

            Current                   New

                                                                                Loop handle


             Spacer                  Spacer
          (6271501500)            (6271501501)




                                                                                   (Model RPT250)

Interchangeability(I/C)
 Item No.       Current part                Q'ty I/C         New part                   Q'ty             Note
           Spacer                                      Spacer
See below.                                   1     Yes                                   1
           6271501500                                  6271501501

Item No. for Spacer
Note: Item Nos. E02, E15, E10 and E10 are allocated to the optional accessories.
EM4251 MH2556            MS20C     MS221    MS2501 MS251 MS251.4 MS2810 MS3210 MS3500K MS4200K
    008      004      123 (E02)     E15          E15    E15       008        E14        E10        025          025

 RBC201       RBC221      RBC226      RBC251       RBC256      RBC281       RBC321      RBK350 RBK420 RPT250
 123 (E02) 138 (E15) 146 (E15) 144 (E15) 146 (E15)            143 (E14)    141 (E10)       025        025        004

Implementation
Already implemented since Dec., 2002 production.
