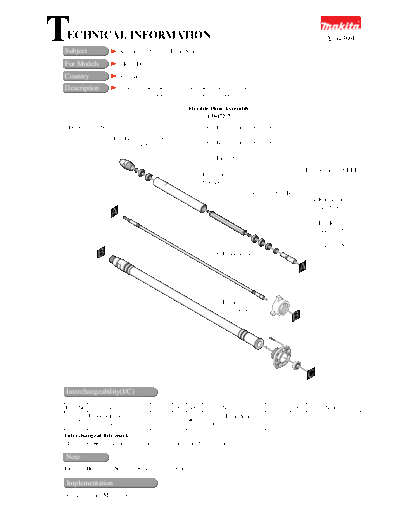

Image preview - the first page of the document
Y04399-WW-1


>> Download Y04399-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Addition of Flexible Hose Assembly
                                                                                                            Y04399

For Models             VR250D
Country                All countries
Description            Flexible hose assembly has become available as a set.
                       It consists of the existing parts illustrated below.

                                                   Flexible Hose Assembly
                                                         (135072-7)
006: Cap (322935-8)                                      008: Ball bearing 626 (210018-5)
                    007: Retaining ring S-6
                                                         009: Ball bearing 626 (210018-5)
                          (961002-0)
                                                         010: Pipe 25 (331503-6)
                                                                                             013: Ball bearing 626LLB
                                                   011: Unbalancer                                (211016-2)
                                                     (322934-0)
                                                                  012: Ball bearing 626LLB
                                                                       (211016-2)                   014: Rubber ring
                                                                                                         (421578-4)

                                                                                                    015: Felt Ring
                                                                                                         (443101-5)

                                                                                                    016: Joint (322969-1)
                                                            018: Flexible wire
                                                                (163387-2)




                                                            019: Flexible hose
                                                                 (163386-4)




Interchangeability(I/C)

Item No.         Current part                 Q'ty I/C          New part                     Q'ty          Note
           Flexible Hose                                 Flexible Hose Assembly
    019                                        1                                              1
           163386-4                                      135072-7
Interchangeability mark ;
 The arrow      means that the new part is substituted for the current.

Note
Flexible Hose (Part No. 163386-4) is still supplied.

Implementation
Available since March 2004
