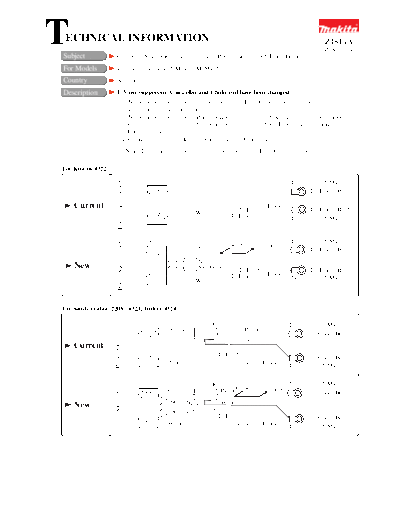

Image preview - the first page of the document
Z4814A-WW-1


>> Download Z4814A-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Noise Suppressor, Controller, Power Supply Cord, Brush Holder, etc.
                                                                                                                               Z4814A
                                                                                                                               (Page 1 of 4)


For Models            4322, 4323, 4324, 4322M, 4323M, M435
Country               All countries
Description           1. Noise suppressor, Controller and Choke coil have been changed.
                                       1) Noise suppressor has been changed for Canary Islands. (4322, 4323, 4324)
                                          The wiring remains the same.
                                       2) Noise suppressor has been added for Kuwait (4322), Saudi Arabia (4323, 220V), Turkey (4324).
                                       3) Controller has been changed for Saudi Arabia (4323, 220V), Bhutan (4323), Turkey (4324),
                                          Bhutan (4324).
                                       4) Choke coil has been added for Kuwait (4322), Bhutan (4322).
                                              Note: The wiring has been changed except for Canary Islands as shown below.

For Kuwait 4322

                                                        Switch                                                     Terminal 1.25-M4
                          Power Supply Cord




                                                                           Orange
                                                        2    1                                                           (To Brush Holder)

    Current                                                                                 (To Field)
                                                                                                          Black          (To Brush Holder)
                                                                           White
                                                        4    3                           (To Field)                Terminal 1.25-M4


                                                        Switch                                                     Terminal 1.25-M4
                          Power Supply Cord




                                                                           Orange      Choke Coil         Orange
                                                        2    1                                                           (To Brush Holder)
                                                                 White     Noise
    New                                                          White     Suppressor       (To Field)                   (To Brush Holder)
                                                        4    3                           (To Field)    Black
                                                                           White                                   Terminal 1.25-M4



For Saudi Arabia (220V) 4323, Turkey 4324
                   Power Supply Cord




                                                   Switch                 Controller                               Terminal 1.25-M4
                                                                 Orange                        Purple
                                                    2    1                                                               (To Brush Holder)
                                                                                               White
    Current
                                                                                    (To Field)
                                                    4    3                                                               (To Brush Holder)
                                                                 White                   (To Field)      Black     Terminal 1.25-M4
                   Power Supply Cord




                                                   Switch                 Controller                               Terminal 1.25-M4
                                                                 Orange                PurpleChoke Coil Purple           (To Brush Holder)
                                                    2    1
                                                                                   White
    New                                                      White
                                                             White
                                                                       Noise
                                                                       Suppressor
                                                                                 (To Field)                              (To Brush Holder)
                                                    4    3
                                                                 White                (To Field)         Black     Terminal 1.25-M4
                                                                                                                        Z4814A
                                                                                                                        (Page 2 of 4)

For Bhutan 4322
                                                 Switch                                                    Terminal 1.25-M4




                        Power Supply Cord
                                                                   Orange
                                                  2   1                                                          (To Brush Holder)
                                                          White      Noise
    Current                                               White      Suppressor      (To Field)                  (To Brush Holder)
                                                  4   3                           (To Field)    Black
                                                                   White                                   Terminal 1.25-M4


                                                 Switch                                                    Terminal 1.25-M4
                        Power Supply Cord

                                                                                Choke Coil        Orange
                                                                   Orange                                        (To Brush Holder)
                                                  2   1
                                                          White      Noise
    New                                                   White      Suppressor      (To Field)                  (To Brush Holder)
                                                  4   3                           (To Field)    Black
                                                                   White                                   Terminal 1.25-M4



For Bhutan 4323, 4324
                    Power Supply Cord




                                            Switch                 Controller                              Terminal 1.25-M4
                                                          Orange                        Purple
                                            2     1                                                              (To Brush Holder)
                                                      White     Noise                 White
    Current                                           White     Suppressor
                                                                          (To Field)
                                             4    3                                                              (To Brush Holder)
                                                          White                (To Field)   Black          Terminal 1.25-M4
                    Power Supply Cord




                                            Switch                 Controller                              Terminal 1.25-M4
                                                          Orange                PurpleChoke Coil Purple          (To Brush Holder)
                                            2     1
                                                                            White
    New                                               White
                                                      White
                                                                Noise
                                                                Suppressor
                                                                          (To Field)                             (To Brush Holder)
                                            4     3
                                                          White                (To Field)        Black     Terminal 1.25-M4


 2. Pan head screws and Clamp washers for installation of switch have been changed. (For all countries)
    1) Clamp washer has been separated from Pan head screw.
                  Current                                                          New
      Pan Head Screw (with Clamp Washer)                           Pan Head Screw + Clamp Washer




                  (652037-9)                                         (652008-6)          (652259-1)

   2) Clamp washer has been added to Pan head screw.
                  Current                                                          New
    Pan Head Screw (without Clamp Washer)                          Pan Head Screw + Clamp Washer




                  (652008-6)                                         (652008-6)          (652259-1)

 3. Power supply cord has been changed. (For all countries)
    Cord guard, Strain relief and Tapping screw have been added.

 4. Brush holder has been changed. (For all countries)
                                                                                                     Z4814A
                                                                                                    (Page 3 of 4)

Interchangeability(I/C)

Item No.        Current part             Q'ty I/C          New part          Q'ty             Note
           Noise Suppressor                        Noise Suppressor                 For Canary Islands
                                           1   Yes                            1
           645105-5                                645006-7                             4322, 4323, 4324
  See                                              Noise Suppressor                 For Kuwait 4322,
 Note 1.                                                                      1      Saudi Arabia 220V 4323
                                                   645105-5                          Turkey 4324
           Insulated Terminal                      Insulated Terminal               For Kuwait 4322,
           RBV1.25-3.5                     2   No FV2-M3                      2      Saudi Arabia 220V 4323
           654037-5                                654077-3                          Turkey 4324
                                                                                                  Interchangeable
           Lead Wire (Orange)
           #18, 160 mm (6-5/16")
                                                     Choke Coil                     For Kuwait 4322 as a set
                                           1                                  1         Bhutan 4322
                                                     646054-9
  See    Controller 220-240V                       Controller 220-240V
                                           1                                  1
 Note 2. 631267-5                                  631266-7
           Pan Head Screw M3.5x8                   Pan Head Screw M3.5x7
                                           4    No                            4
           652037-9                                652008-6                                       Interchangeable
                                                                                    Note 3             as a set
                                                   Clamp Washer
                                                                              4
                                                   652259-1
                                                   Clamp Washer
                                                                              4     Note 4
                                                   652259-1
           Power Supply Cord                       Power Supply Cord
  See
 Note 5.
         AWG #18-2-2.0                     1       #18-2-2.0 SJ0              1
           664424-0                                664881-2
                                                   Cord Guard 8-85                  For Mexico, Panama
   041                                                                        1         4322      Interchangeable
                                                   682502-4
                                                                                                       as a set
  See                                              Strain Relief              1
 Note 6.                                           687063-9
  See                                              Tapping Screw M4x18
 Note 7.                                                                      2
                                                   265995-6
           Power Supply Cord                       Power Supply Cord
  See
         1.0-2-2.0                         1       1.0-2-2.0                  1
 Note 8.
         663906-9                                  663502-3
         Power Supply Cord                         Power Supply Cord
  See
Note 9.
         0.75-2-2.0                        1       0.75-2-2.0                 1
         661728-1                                  693404-9
         Power Supply Cord                         Power Supply Cord
 See
         0.75-2-2.0                        1       1.0-2-2.0                  1
Note 10.
         667088-9                                  696304-2
                                                   Cord Guard 8-85                  For Chile, Syria
                                                                              1                   Interchangeable
                                                   682502-4                             4322
                                                                                                      as a set
 See                                               Strain Relief              1
Note 11.                                           687063-9
 See                                               Tapping Screw M4x18
Note 12.                                                                      2
                                                   265995-6
 See     Brush Holder                              Brush Holder
                                           2   Yes                            2
Note 13. 643552-4                                  643562-1
Interchangeability mark ;
The arrow      means that the new part can be substituted for the current.
                                                                                                              Z4814A
                                                                                                          (Page 4 of 4)
 Note
Note 1: Item No. for Noise Suppressor (645105-5)
 Country &           Kuwait        Saudi Arabia (220V)         Turkey
 Model No.            4322                4323                  4324
  Item No.             042                 044                   003
Note 2: Item No. for Controller (631266-7)
 Country &          Bhutan         Saudi Arabia (220V)         Turkey
 Model No.       4323    4324             4323                  4324
  Item No.        037     015              037                   015

Note 3: 4322, 4323, 4324 --- Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland,
                              Algeria, Cyprus, Reunion, Saudi Arabia, Turkey, South Africa, Australia, New Zealand
        4322, 4324 ---------- New Caledonia, Tahiti
        4323, 4324 ---------- U.K.

Note 4: 4322, 4323, 4324 --- Canary Islands, Bhutan, Korea
        4322, 4324 ---------- Kuwait
        4322, 4323 ---------- Argentina
        4322M, 4323M ----- Malaysia, Singapore
Note 5: Item No. for Power Supply Cord (664881-2)            Note 10: Item No. for Power Supply Cord (696304-2)
 Country &          Canada         Mexico, Panama            Country &      Brazil         Chile, Syria
 Model No.      4323      4324 4322 4323 4324                Model No. 4323 4324 4322 4323 4324
  Item No.       042       001    040 042       001           Item No. 042 001 040 042 001

Note 6: Item No. for Strain Relief (687063-9)                Note 11: Item No. for Strain Relief (687063-9)
 Country & Canada, Mexico, Panama                            Country &      Brazil, Chile, Syria
 Model No.        4323          4324                         Model No.       4323          4324
  Item No.         041           011                          Item No.        041           011

Note 7: Item No. for Tapping Screw (265995-6)                Note 12: Item No. for Tapping Screw (265995-6)
 Country &          Canada          Mexico, Panama           Country &      Brazil, Chile, Syria
 Model No.      4323       4324 4322 4323 4324               Model No.       4323           4324
  Item No.       040        012   038 040 012                 Item No.        040            012

Note 8: Item No. for Power Supply Cord (663502-3)            Note 13: Item No. for Brush Holder (643562-1)
 Country &       U.K. (110V)                                  Country &                All countries
 Model No.      4323      4324                                Model No. 4322 4322M 4323 4323M 4324 M435
  Item No.       042       001                                 Item No.       037           039          013

Note 9: Item No. for Power Supply Cord (693404-9)
 Country &             Taiwan
 Model No.        4323     4324, M435
  Item No.         042        001



Implementation
4322, 4322M, 4323, 4323M: To be implemented around Oct., 2003
4324, M435: To be implemented around Sep., 2003
