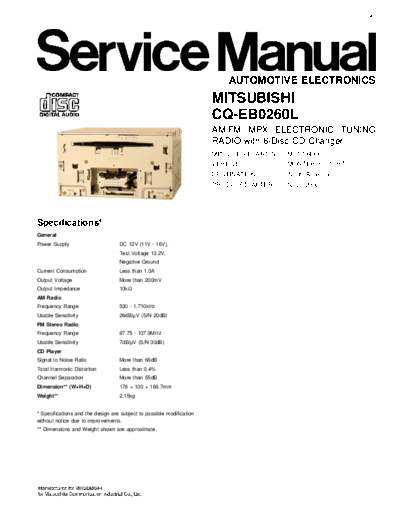

Image preview - the first page of the document
>> Download CQ-EB0260 documenatation <<
Text preview - extract from the document
ORDER No.5043
I0
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-EB0260L
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer
MITSUBISHI PART No. : MR570499
VEHICLE : MONTERO SPORT
DESTINATION : North America
PRODUCED AFTER : Nov., 2002
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V,
Negative Ground
Current Consumption Less than 1.0A
Output Voltage More than 200mV
Output Impedance 10k
AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 26dB/◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
