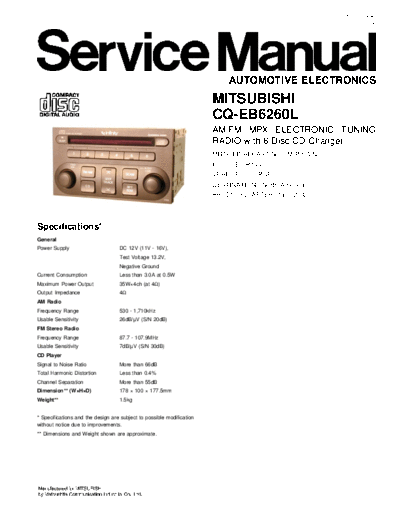

Image preview - the first page of the document
>> Download CQ-EB6260 documenatation <<Text preview - extract from the document ORDER No.5042
I0
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-EB6260L
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer
MITSUBISHI PART No. : MR587252
ID CODE : P103
VEHICLE :ECLIPSE
DESTINATION : North America
PRODUCED AFTER :Jan., 2002
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V,
Negative Ground
Current Consumption Less than 3.0A at 0.5W
Maximum Power Output 35W
