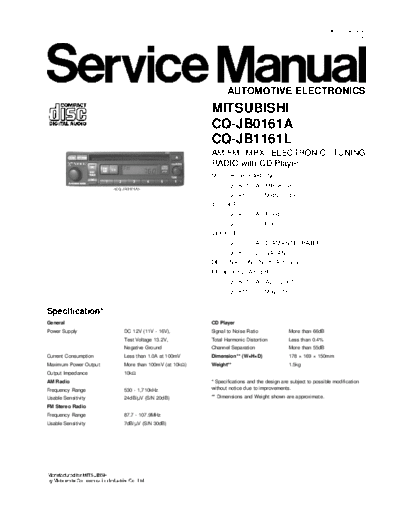

Image preview - the first page of the document
>> Download CQ-JB0161_CQ-JB1161 documenatation <<Text preview - extract from the document ORDER No.5038
I0
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-JB0161A
CQ-JB1161L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MITSUBISHI PART No. :
CQ-JB0161A : MR587387
CQ-JB1161L : MR587249
ID CODE :
CQ-JB0161A : P004
CQ-JB1161L : P003
VEHICLE :
CQ-JB0161A : DIAMANTE, PAJERO
CQ-JB1161L : GALANT
DESTINATION : North America
PRODUCED AFTER :
CQ-JB0161A : Apr., 2001
CQ-JB1161L : May, 2001
Specification*
General CD Player
Power Supply DC 12V (11V - 16V), Signal to Noise Ratio More than 66dB
Test Voltage 13.2V, Total Harmonic Distortion Less than 0.4%
Negative Ground Channel Separation More than 55dB
Current Consumption Less than 1.0A at 100mV Dimension** (W
