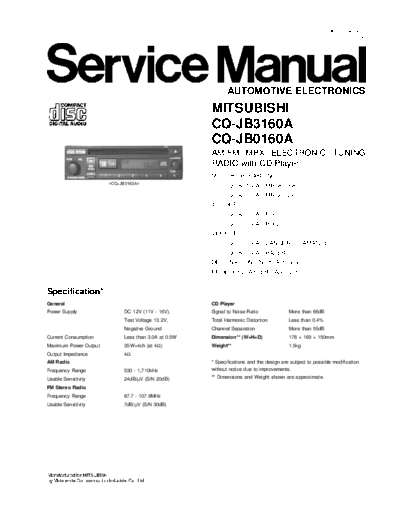

Image preview - the first page of the document
>> Download CQ-JB3160_CQ-JB0160 documenatation <<Text preview - extract from the document ORDER No.5037
I0
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-JB3160A
CQ-JB0160A
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MITSUBISHI PART No. :
CQ-JB3160A : MR587268
CQ-JB0160A : MR587386
ID CODE :
CQ-JB3160A : P001
CQ-JB0160A : P002
VEHICLE :
CQ-JB3160A : LANCER / DIAMANTE
CQ-JB0160A : PAJERO
DESTINATION : North America
PRODUCED AFTER : Apr., 2001
Specification*
General CD Player
Power Supply DC 12V (11V - 16V), Signal to Noise Ratio More than 66dB
Test Voltage 13.2V, Total Harmonic Distortion Less than 0.4%
Negative Ground Channel Separation More than 55dB
Current Consumption Less than 3.0A at 0.5W Dimension** (W
