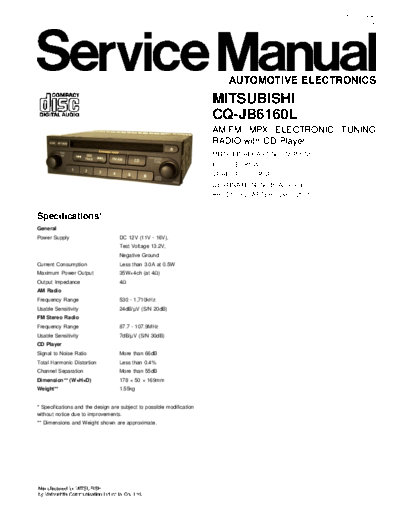

Image preview - the first page of the document
>> Download CQ-JB6160 documenatation <<Text preview - extract from the document ORDER No.5041
I0
AUTOMOTIVE ELECTRONICS
MITSUBISHI
CQ-JB6160L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MITSUBISHI PART No. :MR587250
ID CODE :P104
VEHICLE :ECLIPSE
DESTINATION :North America
PRODUCED AFTER : Dec., 2001
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V,
Negative Ground
Current Consumption Less than 3.0A at 0.5W
Maximum Power Output 35W
