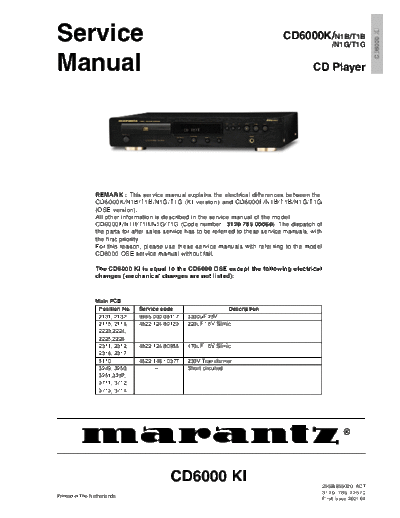

Image preview - the first page of the document
>> Download CD-6000KI documenatation <<
Text preview - extract from the document
Service
CD6000 KI
CD6000K/N1B/T1B
/N1G/T1G
Manual CD Player
REMARK : This service manual explains the electrical differences between the
CD6000K/N1B/T1B/N1G/T1G (KI version) and CD6000F/N1B/T1B/N1G/T1G
(OSE version).
All other information is described in the service manual of the model
CD6000F/N1B/T1B/N1G/T1G (Code number : 3120 785 00060). The dispatch of
the parts for after sales service has to be referred to these service manuals, with
the first priority.
For this reason, please use these service manuals with referring to the model
CD6000 OSE service manual without fail.
The CD6000 KI is equal to the CD6000 OSE except the following electrical
changes (mechanical changes are not listed):
Main PCB
Position No. Service code Description
2131, 2132 9965 000 08117 3300uF 25V
2115, 2116, 4822 124 80123 220uF 16V Silmic
2223,2224,
2225,2226
2311, 2312, 4822 124 80958 470uF 16V Silmic
2316, 2317
5110 4822 146 10377 230V Transformer
3249, 3250, -- Short circuited
3251,3252,
3711, 3712,
3713, 3714
R
CD6000 KI 255W855020 ACT
3120 785 22570
Printed in The Netherlands First Issue:2001.04
Transformer Connections
Below the color coding and the connections for the transformer wires are given.
Yellow
Green 9161
12.7 V
Grey
Violet 9162 14.7 V
Pink
9158 Black
0V
Orange 9163 14.7 V
Red 9164 8.3 V
9159 White
230 V
Yellow 9165 0V
Blue 9166 8.3 V
Orange 9167 0V
Brown 9168 3.4 V
R
Service
CD6000
CD6000 /N1B, /N1G, /T1B, /K1B, /K1G
CD6000F /N1B, /N1G, /T1B, /U1B, /F1B, /F1N
Manual CD Player
CD6000
CD6000OSE
TABLE OF CONTENTS
1. TECHNICAL SPECIFICATIONS .................................................................................. 1
2. SERVICING HINTS ...................................................................................................... 2
3. SERVICINE TOOLS ..................................................................................................... 2
4. SERVICE MODE .......................................................................................................... 4
5. MICROPROCESSOR AND IC DATA ........................................................................... 5
6. BLOCK DIAGRAM ........................................................................................................ 7
7. WIRING DIAGRAM ...................................................................................................... 9
8. SCHEMATIC DIAGRAM AND PARTS LOCATION ................................................... 11
9. EXPLODED VIEW AND PARTS LIST ....................................................................... 30
10. ELECTRICAL PARTS LIST ........................................................................................ 34
Please use this service manual with referring to the user guide (D.F.U) without fail.
- CD6000 / CD6000OSE -
255W855010 AO
3120 785 00060
Printed in Japan
First Issue:1999.06
Date: 10-May-01 Model: CD6000/CD6000OSE
Page: 1/1 REF.NB MZ01-013
SERVICE BULLETIN Subject:
Circulation: Application:
x for information Correction of parts code number and description
customer complaint in (POS. NO 5).
case of service Service Manual
mandatory
................... Int.ref:
[PHENOMENON]
The part number and description for POS.NO 5 mentioned on page 33 of the service
manual (255W855010, 3120 785 00060) are incorrect.
CD LOADER EXPLODED VIEW (page 33)
POS. VERS. PART NO. DESCRIPTION
NO COLOR (FOR PCS)
5 4822 402 61412 BRACKET, STEEL
[CORRECTION]
The correct spare parts code number and description are;
POS. VERS. PART NO. DESCRIPTION
NO COLOR (FOR PCS)
5 4822 401 11709 DISC CLAMP VAM1201 ONLY
Approved by H. Tamura Written by K. Ono
Date: 16-Mar-01 Model: CD6000,CD6000OSE
Page: 1/1 REF.NB MZ01-004
SERVICE BULLETIN Subject:
Circulation: Application:
x for information SV00xxxxxxxxxx Change of CD mechanism and CD loader
customer complaint in
case of service XE00xxxxxxxxxx
mandatory XE01xxxxxxxxxx
................... XE02xxxxxxxxxx Int.ref:
[PHENOMENON]
CD mechanism and CD loader (with Disc clamper) was changed as follows.
Service code CD Clumper CD
mechanism (color) loader
SV00 VAM1201/01 GRAY L1260/41
XE00 VAM1202/02 BLACK L1260/61
XE01 VAM1201/11 GRAY L1260/41
XE02 VAM1201/11 GRAY L1260/45
[SOLUTION]
When replace the CDmechanism with the new one as repair, please remark the service modification
code and refer to the following details.
1. In case of service modification code SV00, XE01, XE02
Replace the CD mechanism with the new one VAM1201/11 (4822 691 10615, 356K304500) only.
2. In case of service modification code XE00
Replace both the CD mechanism and the disc clamper with the new ones VAM1201/11 (4822 691
10615, 356K304500), disc clamper (4822 401 11709, 305K005600).
Approved by H. Tamura Written by K. Ono
Date: 16-Mar-01 Model: CD6000,CD6000OSE
Page: 1/1 REF.NB MZ01-003
SERVICE BULLETIN Subject:
Circulation: Application:
Problem with the function "DELETE PROGRAMMING".
x for information SV00xxxxxxxxxx
customer complaint in Problem with the emphasis CD playback.
case of service XE00xxxxxxxxxx
mandatory and
................... XE01xxxxxxxxxx Int.ref:
[PHENOMENON]
Problem with the function "DELETE PROGRAMMING".
When playing back the CD in "DELETE PROGRAMMING" mode. If only one track is deleted,
then the next track and all following tracks will not be played back.
In case of several tracks are deleted, then it will be repeated to first track after playing back last
track.
Problem with the emphasis CD play back.
When playback several emphasis CD's continuously.
The second emphasis CD is played back without de-emphasis after the first emphasis CD has
played back.
[SOLUTION]
Replace the microprocessor 7600 with the improved one (9965 000 06337,
HU255WN03F). The improved one is available with above code numbers.
[REMARK]
This improvement has been done in the production line after the service modification code number
"XE02" and later. The lot number and the service modification code are mentioned in the serial
number label on the rear panel. (ex. XE02 xxxxxxxxxx)
This service bulletin is the revised one (MZ00-009).
Please replace the service bulletin MZ00-009 with this one.
Approved by H. Tamura Written by K. Ono
Date: 10-Aug-00 Model: CD6000,CD6000OSE
Page: 1/1 REF.NB MZ00-009
SERVICE BULLETIN Subject:
Circulation: Application:
Problem with the function "DELETE PROGRAMMING".
x for information
customer complaint SV00xxxxxxxxxx Problem with the emphasis CD playback.
in case of service and
mandatory XE00xxxxxxxxxx
................... Int.ref:
[PHENOMENON]
Problem with the function "DELETE PROGRAMMING".
When playing back the CD in "DELETE PROGRAMMING" mode. If only one track is deleted,
then the next track and all following tracks will not be played back.
In case of several tracks are deleted, this phenomenon will not be appeared.
Problem with the emphasis CD play back.
When playback several emphasis CD's continuously.
The second emphasis CD is played back without de-emphasis after the first emphasis CD has
played back.
[SOLUTION]
Replace the microprocessor 7600 with the improved one (9965 000 06337,
HU255WN03F). The improved one is available with above code numbers.
[REMARK]
This improvement has been done in the production line after the service modification code number
"XE01" and later. The lot number and the service modification code are mentioned in the serial
number label on the rear panel. (ex. XE01 xxxxxxxxxx)
Approved by Y. Okabe Written by H. Tamura
Date: 13-Jun-2003 Model: CD6000
Page: 1/1 REF.NBR: MZ00-007 Rev
SERVICE BULLETIN
Subject:
Circulation: Application:
Recorded CD-R disc can not be played back
x for information
customer complaint See below
in case of service
mandatory
Int.ref:
[ PHENOMENON]
Recorded CD-R disc can not be played back very few.
[REASONS]
CD player can not detect the CD-R disc.
[SOLUTION]
Add the capacitor <10pF 50V NP0 0805> (5322 122 32448, DD91100300) to the position 2509 on the HF AMP
PCB.
[REMARKS]
This solution has already been applied in the production after the serial number as below and later.
CD6000/N2G XE040312006992 and later.
CD6000F/N2G XE040313008949 and later.
CD6000L/N1G XE040312006383 and later.
CD6000F/N2B XE040313009836 and later.
CD6000L/N1B XE040312006273 and later.
CD6000L/T1B XE040312003101 and later.
CD6000/K2G XE040316001063 and later.
Approved by S.Nagao Written by
WQ-19 2 817/additional rule3 (1st Issue 2003-03-19)
Date: 10-Aug-00 Model: CD6000,CD6000OSE
Page: 1/1 REF.NB MZ00-007
SERVICE BULLETIN Subject:
Circulation: Application:
x for information Recorded CD-R disc can not be playback.
customer complaint
in case of service All
mandatory
................... Int.ref:
[PHENOMENON]
Recorded CD-R disc can not be played back very few.
[REASON]
CD-R disc can not be detected by CD player.
[SOLUTION]
Add the capacitor <10pF 50V NP0 0805> (5322 122 32448, DD91100300) to the position 2509 on the
HF AMP PCB.
[REMARK]
This modification has to applied for product which has above mentioned phenomenon only.
Then this modification will be not applied at production.
Approved by Y. Okabe Written by H. Tamura
MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for which
it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
USA EUROPE / TRADING BRAZIL
MARANTZ AMERICA, INC INC. MARANTZ EUROPE B.V. MARANTZ BRAZIL
440 MEDINAH ROAD P.O.BOX 80002, BUILDING SFF2 CAIXA POSTAL 21462
ROSELLE, ILLINOIS 60172 5600 JB EINDHOVEN CEP 04698-970
USA THE NETHERLANDS SAO PAULO, SP, BRAZIL
PHONE : 630 - 307 - 3100 PHONE : +31 - 40 - 2732241 PHONE : 0800 - 123123(Discagem Direta Gratuita)
FAX : 630 - 307 - 2687 FAX : +31 - 40 - 2735578 FAX : +55 11 534. 8988
AMERICAS CANADA
SUPERSCOPE TECHNOLOGIES, INC. LENBROOK INDUSTRIES LIMITED
MARANTZ PROFESSIONAL PRODUCTS 633 GRANITE COURT,
2640 WHITE OAK CIRCLE, SUITE A PICKERING, ONTARIO L1W 3K1
AURORA, ILLINOIS 60504 USA CANADA
PHONE : 630 - 820 - 4800 PHONE : 905 - 831 - 6333
FAX : 630 - 820 - 8103 FAX : 905 - 831 - 6936
AUSTRALIA THAILAND SINGAPORE
SCAN AUDIO PTY. LTD. MRZ STANDARD CO.,LTD WO KEE HONG (S) PTE LTD
52 CROWN STREET, RICHMOND 3121 746 - 754 MAHACHAI ROAD., WO KEE HONG CENTRE
VICTORIA WANGBURAPAPIROM, PHRANAKORN, NO.23, LORONG 8, TOA PAYOH
AUSTRALIA BANGKOK, 10200 THAILAND SINGAPORE 319257
PHONE : +61 - 3 - 9429 - 2199 PHONE : +66 - 2 - 222 9181 PHONE : +65 2544555
FAX : +61 - 3 - 9429 - 9309 FAX : +66 - 2 - 224 6795 FAX : +65 2502213
NEW ZEALAND TAIWAN MALAYSIA
SCAN AUDIO PTY. LTD. PAI- YUING CO., LTD. WO KEE HONG ELECTRONICS SDN. BHD.
8C PIERMARK DRIVE, ALBANY. 6 TH FL NO, 148 SUNG KIANG ROAD, NO. 102 JALAN SS 21/35, DAMANSARA
NORTH SHORE, AUCKLAND. TAIPEI, 10429, TAIWAN R.O.C. UTAMA, 47400 PETALING JAYA
NEW ZEALAND PHONE : +886 - 2 - 25221304 SELANGOR DARUL EHSAN, MALAYSIA
PHONE : +64 - 9444 - 4710 FAX : +886 - 2 - 25630415 PHONE : +60 3 - 7184666
FAX : +64 - 9444 - 1346 FAX : +60 3 - 7173828
JAPAN Technical KOREA
MARANTZ JAPAN, INC. MK ENTERPRISES LTD.
35- 1, 7- CHOME, SAGAMIONO ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
SAGAMIHARA - SHI, KANAGAWA 3GA, HANGANG-RO, YONGSAN-KU, SEOUL
JAPAN 228-8505 KOREA
PHONE : +81 42 748 1013 PHONE : +822 - 3232 - 155
FAX : +81 42 748 9190 FAX : +822 - 3232 - 154
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and
controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and
verified before it is return to the user/customer.
Ref. UL Standard No. 1492.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
990521A.O
1. TECHNICAL SPECIFICATIONS
Audio Characteristics
Channels ........................................................ 2 channels
Sampling frequency (CD mode) ....................... 44.1 kHz
Quantization ................................... 16-bit linear/channel
Error correction .. Cross-interleave read solomon code (CIRC)
D/A conversion ................................. 1-bit linear/channel
Wow & flutter ..................................... Precision of quartz
Optical Readout System
Laser ........................................... AIGaAs semiconductor
Wavelength ......................................................... 780 nm
Frequency Characteristics
Frequency range ....................................... 5 Hz - 20 kHz
Dynamic range .................................................... 98 dB
S/N ratio ............................................................ 110 dB
Channel separation (1 kHz) .............................. 103 dB
THD (1 kHz) ..................................................... 0.0025 %
Analog output
Output level (cinch JACKS) ...................... 2.0 V RMS
Output impedance .................................... 250 ohms
Digital output
Output level (cinch JACK) ............ 0.5 Vp-p/75 ohms
Output level (optical JACK) ......................... -19 dBm
Power Supply
Power requirement
/K version ............................ 110 / 220V AC 50/60 Hz
/N,/T version ..................................... 230V AC 50 Hz
/U version .......................................... 120V AC 60 Hz
Power Consumption ............................................. 13 W
Cabinet, etc.
Dimensions
Width .............................................................. 440mm
Height .............................................................. 86mm
Depth ............................................................. 312mm
Netweight (CD6000) .............................................. 4.1 kg
Netweight (CD6000F) ........................................... 5.6 kg
Operating temperatures ........................... +5 ~ +35
Operating humidity ................. 5 % ~ 90 % (without dew)
Accessories
Remote control unit (RC6000CD) ................................. 1
AAA (R03) Batteries ...................................................... 2
Stereo audio cable with cinch pins ............................... 1
Remote cable with cinch pin ......................................... 1
Improvement may result in changes in specifications and
design without notice.
1
2. SERVICING HINTS
3. SERVICE TOOLS
Audio signals disc 4822 397 30184
Disc without errors (SBC444)+
Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245
Disc (65 min 1kHz) without no pause 4822 397 30155
Max. diameter disc (58.0 mm) 4822 397 60141
Torx screwdrivers
Set (straight) 4822 395 50145
Set (square) 4822 395 50132
13th order filter 4822 395 30204
2
WARNING ESD WAARSCHUWING
All ICs and many other semiconductors are susceptible to Alle IC ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
