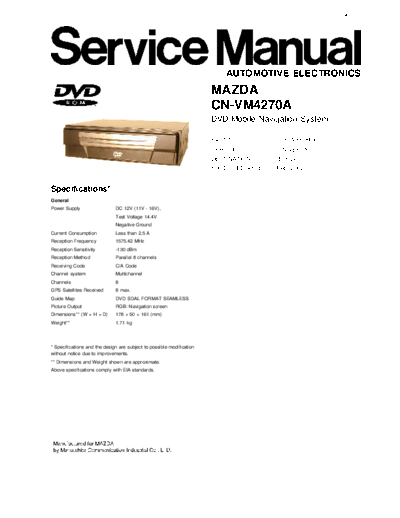

Image preview - the first page of the document
CN-VM4270A


>> Download CN-VM4270A documenatation <<

Text preview - extract from the document
                                                                                                        ORDER No.1110




                                                                           AUTOMOTIVE ELECTRONICS
                                                                       MAZDA
                                                                       CN-VM4270A
                                                                       DVD Mobile Navigation System

                                                                       PART No.         : GK3A 66 8FX
                                                                       VEHICLE          : UNIVERSAL
                                                                       DESTINATION      : Europe
                                                                       PRODUCED AFTER   :Feb.,2002


Specifications*
General
Power Supply                  DC 12V (11V - 16V),
                              Test Voltage 14.4V
                              Negative Ground
Current Consumption           Less than 2.5 A
Reception Frequency           1575.42 MHz
Reception Sensitivity         -130 dBm
Reception Method              Parallel 8 channels
Receiving Code                C/A Code
Channel system                Multichannel
Channels                      8
GPS Satellites Received       8 max.
Guide Map                     DVD SDAL FORMAT SEAMLESS
Picture Output                RGB: Navigation screen
