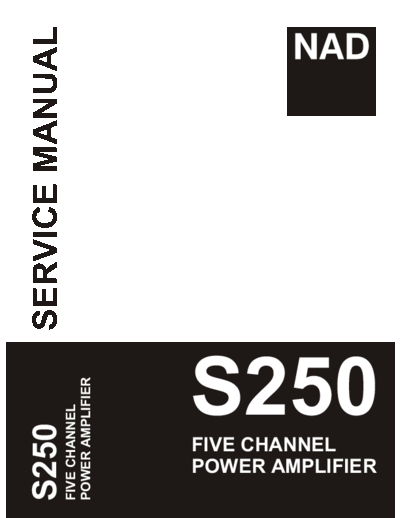

Image preview - the first page of the document
S-250


>> Download S-250 documenatation <<

Text preview - extract from the document
S250                       SERVICE MANUAL
FIVE CHANNEL
POWER AMPLIFIER




  FIVE CHANNEL
  POWER AMPLIFIER
                    S250
                                               CONTENTS

FRONT PANEL / REAR PANEL VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ALIGNMENT PROCEDURE / ALIGNMENT POINTS . . . . . . . . . . . . . . . . . . . . . . . . 5
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PCB LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
EXPLODED VIEW PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PACKING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17


                          SERVICE SAFETY PRECAUTIONS
1. Replacing the Fuses

CAUTION: FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE REPLACE ONLY
WITH SAME TYPE OF FUSE.

 REFERENCE NO.              PART NUMBER             DESCRIPTION
PSU Board
 F1*AH        !             5120-0506-0             12.5A 250V Time Lag 6.3x32mm UR

 F1*C     !                 5120-0025-0             6.3A 250V HBC Time Lag 5x20mm SEMKO/VDE


Amp Board
 F1-F2*AH             !     5120-0040-0             6.3A 250V Time Lag 5x20mm UL

 F1-F2*C          !         5120-0025-0             6.3A 250V HBC Time Lag 5x20mm SEMKO/VDE

NOTE:
*AH : North American version only
*C : European version only



2. Safety-check out (North American model only)
Before returning the product to the customer, make leakage current or resistance measurements
to determine that exposed parts are acceptably insulated from the supply circuit.



Parts marked with the symbol ! are critical with regard to the risk of fire and electric shock.
Replace only with parts recommended by the manufacturer.
FRONT PANEL / REAR PANEL VIEW                                                                           RETURN TO CONTENTS
FRONT PANEL CONTROLS

    NAD                                                Five Channel Power Amplifier S250




                                                                                                                              PROTECTION SOFT CLIPPING




     1        2                                                                                                                  3            4

     1. POWER SWITCH                                                                       3. PROTECTION INDICATOR
     2. POWER INDICATOR                                                                    4. SOFT CLIPPING INDICATOR

          The graphic symbol of a lightning flash with an arrow point                            The graphic symbol of an exclamation point within
          within a triangle signifies that there is dangerous voltage                            an equilateral triangle warns a user of the device
          within the unit and it posses a hazard to anyone removing                              that it is necessary to refer to the instruction
          the cover to gain access to the interior of the unit. Only                             manual and its warnings for proper operation of
          qualified service personnel should make such attempt.                                  the unit.



REAR PANEL CONNECTIONS
                                                                                                                                1 2                      345




          1
                                                                                                                                         AUTO TRIGGER




                                                                                                                                        +12V TRIGGER IN




                                                                                                                                              AC MAINS INPUT
                                                                                                                                                  120V




                                                                         6                                                                           7
     1.   LEVEL CONTROL                                                                    5. 12V TRIGGER INPUT
     2.   INPUT JACK                                                                       6. SPEAKER TERMINALS
     3.   SOFT CLIPPING SWITCH                                                             7. AC INLET
     4.   AUTO TRIGGER SWITCH
                                                                         RETURN TO CONTENTS
SPECIFICATIONS

Specifications are measured in accordance with IHF standard IHF-A-202, 1978.



                                                            NOMINAL      LIMIT

1. THD                                                      #0.02%       #0.03%



2. Continuous Power Output                      8 ohms      $125W        $100W
   20kHz, 5 ch. for 8 ohms, 4 ch. for 4 ohms)   4 ohms      $125W        $100W



3. Clipping Power                                           $135W        $110W



4. S/N Ratio                                    A-wtd       $96dB        $93dB
   maximum)                                     Audio BPF   $89dB        $86dB



5. Frequency Response                                       0 ~ -0.1dB   0 ~ -0.25dB



6. Input Sensitivity                                        100
