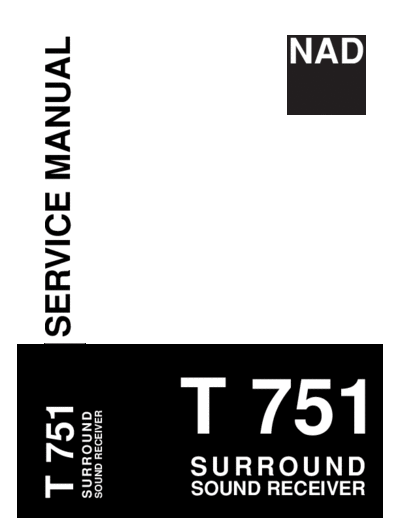

Image preview - the first page of the document
T-751


>> Download T-751 documenatation <<

Text preview - extract from the document
T 751                               SERVICE MANUAL
SURROUND
SOUND RECEIVER
                                                NAD




SOUND RECEIVER
                 SURROUND
                            T 751
                                 SERVICE SAFETY PRECAUTIONS

1.     Replacing the fuses

CAUTION: FOR CONTINUED PROTECTION AGAINST THE RISK OF FIRE REPLACE ONLY
WITH SAME TYPE OF FUSE.

Reference No                        Part Number                  Description
M751*AH                             5120-0200-0                  Fuse 5A 125V Time Lag 5x20 MM MITI/UL/CSA
M754*AH                             5120-0052-0                  Fuse 1.6A 250V Time Lag 5x20 MM UL/CSA
M752*C                              5120-0024-0                  Fuse 3.15A 250V Time Lag 5x20 MM SEMKO/VDE

NOTE:
  <*AH > : USA, CANADIAN MODEL ONLY.
  <*C > : EUROPEAN MODEL ONLY.

2.   Safety check out
(Only U.S.A. model)
Before returning the product to the customer, make leakage current or resistance measurements
to determine that exposed parts are acceptably insulated from the supply circuit.

     Parts marked with the symbol   are critical with regard to the risk of fire and electric shock.
     Replace only with parts recommended by the manufacturer.


CONTENTS
DESCRIPTION                                                                                                                 PAGE
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
REAR PANEL / FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
ADJUSTMENT POINTS DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
INSTRUMENT SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ALIGNMENT PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PCB LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-19
SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-38
IC BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39-46
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47-69
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
EXPLODED VIEW PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71-72
PACKING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73




                                                                 2
SPECIFICATIONS
POWER AMPLIFIER AND PREAMPLIFIER SECTIONS
Rated distortion    (THD 20Hz-20 kHz FC/C/FR)                             0.08%
                    (THD 20Hz-20 kHz SL/SR)                               0.3%
Input Sensitivity   (ref. 8 ohms, 1 kHz)                                 180+/-30 mV
S/N Ratio           (A-wtd, 1KHz, 1W, 8 ohm)                              -76 dB
                    (A-wtd, 1KHz, 70W, 8 ohm)                             -90 dB
Frequency Response                           (20 Hz - 20 kHz)            0
