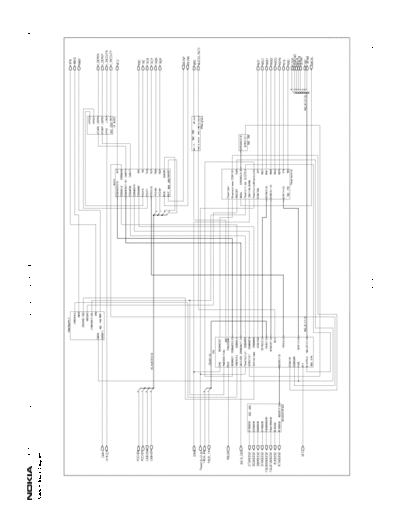

Image preview - the first page of the document
>> Download gm8bv7 documenatation <<
Text preview - extract from the document
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
System Block Diagram
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
CPU
N.A.
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Audio
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
VDA Signal
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
HF Audio
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Power Control
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
SIM
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Interconnections
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
RF Connector
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Data Connector
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
RF Block
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
RF Main
AFC, 0.3 ... 2.3V
RFC, 0.8...1.2Vpp@13MHz
IF1, 71 MHz
RXin, -110... -15 dBm
n.a.
IF2, 50 mVpp @ 13MHz
IF2, 1.734 mVpp @ 13MHz
PAout, 5dBm ...39 dBm
n.a.
RXin, -110... -15 dBm
symm. I/Q, -3dBm @ 116 MHz
RFout, min 8dBm
n.a.
PAout, 8 ... 41 dBm
TXout, 5 dBm
UHF LO, 8dBm @ 1006...1031 MHz
UHF LO in,-8dBm @ 1006...1031MHz
n.a.
I/Q in, 1.022...1.18 V
COG
COG 0805 COG
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Power Amp
not used
Power Control,1...5V
n. a. = not assembled
Detected FWD pwr
RF, -12...+23 dBm
42 dBm
RF, 41 dBm @ 880...915 MHz
RF, 5 dBm @ 880...915 MHz
PA Supply, DC 4A
n. a.
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
RS232 level Shifter
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Test Connectors
COPYRIGHT(C) NOKIA MOBILE PHONES. ALL RIGHTS RESERVED
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED
WORK
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED
THIS DRAWING CONTAINS PROPRIETY AND CONFIDENTIAL INFORMATION
THIS DOCUMENT IS THE PROPERTY OF NOKIA MOBILE PHONES
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Component Layout - Top
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Component Layout - Bottom
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Assembly Values - Top
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
Assembly Values -Bottom
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV *0% Y 10(
$PHQGPHQW 1RNLD 0RELOH 3KRQHV 3DJH $
