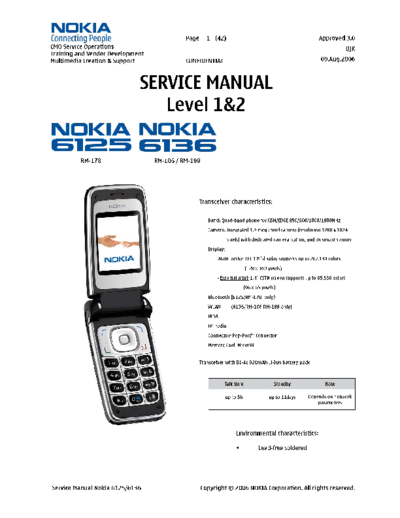

Image preview - the first page of the document
>> Download 6125_RM-178_6136_RM-199_SM_Level_1_2 documenatation <<
Text preview - extract from the document
Page (42) Approved 3.0
CMO Service Operations DJK
Training and Vendor Development
Multimedia Creation & Support CONFIDENTIAL 09.Aug.2006
SERVICE MANUAL
Level &2
RM-78 RM-06 / RM-99
Transceiver characteristics:
Band: Quad-band phone for GSM/EDGE 850/900/1800/1900MHz
Camera: Integrated 1.3-megapixel camera (resolution 1280 x 1024
pixels) with dedicated camera button, and 8x smooth zoom
Display:
-Main: active TFT 1.8" display supports up to 262,144 colors
(128 x 160 pixels)
- External mini: 1.4" CSTN screen supports up to 65,536 colors
(96 x 65 pixels)
Bluetooth (625/RM-78 only)
WLAN (636/RM-06 RM-99 only)
IRDA
FM radio
Connector: Pop-PortTM Connector
Memory Card: MicroSD
Transceiver with BL-4c 820mAh Li-Ion battery pack
Talk time Standby Note
up to 5h up to 11days Depends on network
parameters
Environmental characteristics:
