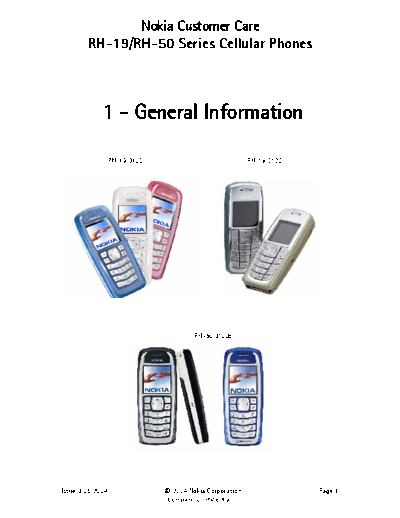

Image preview - the first page of the document
>> Download 01-rh19-rh50-general documenatation <<
Text preview - extract from the document
Nokia Customer Care
RH-19/RH-50 Series Cellular Phones
1 - General Information
RH-19 3100 RH-19 3120
RH-50 3100b
Issue 3 05/2004 2004 Nokia Corporation. Page 1
Company Confidential
RH-19/RH-50 Company Confidential
1 - General Information Nokia Customer Care
This page has been intentionally left blank
Page 2 2004 Nokia Corporation. Issue 3 05/2004
Company Confidential RH-19/RH-50
Nokia Customer Care 1 - General Information
Table of Contents
Page No
The Product................................................................................................................................................. 5
Handportable transceiver ................................................................................................................... 5
Product and module list ..................................................................................................................... 6
General specification ........................................................................................................................... 7
Accessories ............................................................................................................................................. 8
Issue 3 05/2004 2004 Nokia Corporation. Page 3
RH-19/RH-50 Company Confidential
1 - General Information Nokia Customer Care
This page has been intentionally left blank
Page 4 2004 Nokia Corporation. Issue 3 05/2004
Company Confidential RH-19/RH-50
Nokia Customer Care 1 - General Information
The Product
This service manual documents features, functioning and repair of two products, which
are variants of the same product family. RH-19 is a traditional triple band GSM phone
(900, 1800, 1900 MHz), RH-50 uses GSM with 850 MHz in place of 900 MHz. The RH-19
(RH-50) is a triple band handportable mobile telephone for the E-GSM 900 (GSM850),
GSM 1800 and GSM 1900 networks, automatically switching between 900 (850), 1800
and 1900MHz bands; automatic handover between 900 (850) & 1800 MHz bands. It is
power class 1 (1W) transceiver in all bands except GSM900 (850) where it is a power
class 4 transceiver (2W).
The RH19/RH50 products have additional features as defined below:
