Customer Care Solutions
NHM-10 Series Transceivers
1-General Information
3600 3620
Issue 2 01/2004 Copyright 2004 Nokia Corporation Page 1-1
Company Confidential
NHM-10 Company Confidential
CCS Technical Documentation
Table of Contents
Page
No
Product Selection .................................................................................... 3
Handportables ............................................................................... 3
Product key features .............................................................................. 3
Display and keypad ....................................................................... 3
Hardware characteristics ............................................................ 3
UI features ...................................................................................... 4
Power management ..................................................................... 5
Mechanical dimensions .............................................................. 5
Accessories ............................................................................................... 6
Page 1-2 Copyright 2004 Nokia Corporation Issue 2 01/2004
Company Confidential
Company Confidential NHM-10
CCS Technical Documentation
Product Selection
Handportables
The NHM-10 (Nokia 3600/3620) are dual band handportable mobile imaging telephones
for GSM850 and GSM1900 networks. The 3600 has a circular User Interface Layout while
the 3620 has a standard 4 x 3 matrix.

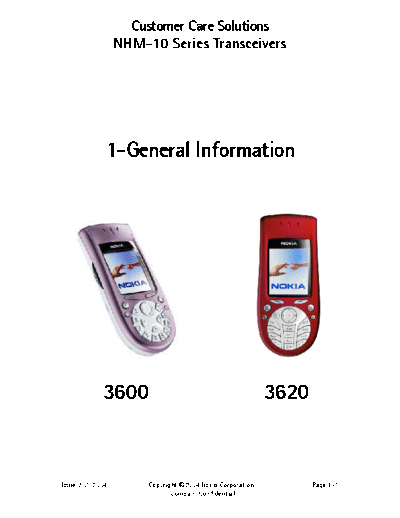

Figure 1: NHM-10 Phone
3600 3620
Product key features
Display and keypad
