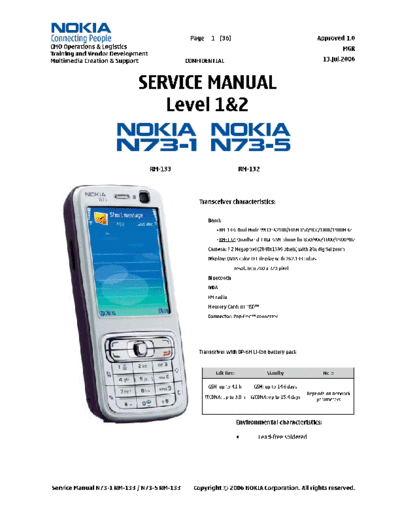

Image preview - the first page of the document
>> Download N73-5_RM-132_SM_Level_1_2 documenatation <<
Text preview - extract from the document
Page 1 (36) Approved 1.0
CMO Operations & Logistics MGR
Training and Vendor Development
Multimedia Creation & Support CONFIDENTIAL 13.Jul.2006
SERVICE MANUAL
Level 1&2
RM-133 RM-132
Transceiver characteristics:
Band:
- RM-133: Dual Mode WCDMA2100/EGSM 850/900/1800/1900MHz
- RM-132: Quadband EDGE GSM phone for 850/900/1800/1900MHz
Camera: 3.2 Megapixel (2048x1536 pixels) with 20x digital zoom
Display: QVGA color TFT display with 262.144 colors,
resolution 240 x 320 pixel
Bluetooth
IrDA
FM radio
Memory Card: miniSDTM
Connector: Pop-PortTM connector
Transceiver with BP-6M Li-Ion battery pack
Talk time Standby Note
GSM: up to 4.1 h GSM: up to 14.6 days
Depends on network
WCDMA: up to 3.8 h WCDMA: up to 15.4 days parameters
Environmental characteristics:
