3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(

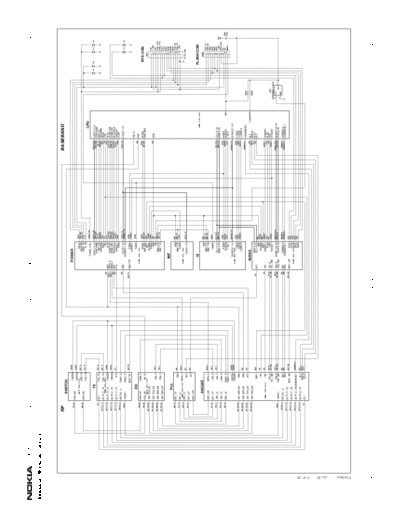

Baseband / RF Interconnections
RF BASEBAND
SWITCH
POWER
REF 900-999
CPU
TX
REF 800-899
RX
REF 100-199
SYS CON
REF 700-799
INF
PLL
REF 600-699
REF 370-399
UI REF 300-369
FLASH CON
HAGAR
REF 400-499
AUDIO
REF 500-599
REF 200-299
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Power
Not Assembled Not Assembled
Not Assembled Not Assembled
Not Assembled
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Audio
Not Assembled
Not Assembled
Not Assembled
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
CPU
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Infra red Module
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
User Interface
VOL \/ SEND END VOL /\
SOFT < /\ \/ SOFT >
1 4 7 *
2 5 8 0
Not Assembled
3 6 9 #
POWER ON/OFF
ACOUSTIC HOLES
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Hagar
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
PLL
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
RX
Not Assembled
Not Assembled
Not Assembled
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
TX
Not Assembled
Not Assembled
Not Assembled
Not Assembled
Not Assembled
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Switch
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
3$06 7HFKQLFDO 'RFXPHQWDWLRQ 6FKHPDWLFV /D\RXWV 6' Y 13(
Component Layouts
,VVXH 1RNLD 0RELOH 3KRQHV 3DJH $
