                                                  CONFIDENTIAL                    1 (1)




Nokia Mobile Phones                               Service Bulletin No. SB-022/29.03.00
Technical Support, Europe & Africa

                                                  NSM-2


FOAM FOR ANTENNA SWITCH

               A piece of polyurethane foam (called "Duplexer Foam") has been added on
               the top of the Antenna Switch (Z670) to prevent damages caused by a free
               fall. If Antenna Switch is changed, duplexer foam has to be added on the top

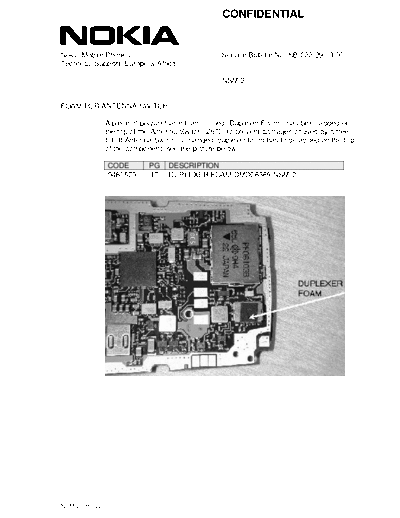

               of the component (see the picture below).

               CODE         PG    DESCRIPTION
               9480579      17    DUPLEXER FOAM DMD06369 NSM-2




NSM-2 SB-022
