                                                 CONFIDENTIAL                   1 (1)




Nokia Mobile Phones                              Service Bulletin No. SB-013/10.11.00
Technical Support, Europe & Africa

                                                 NHM-5


TIGHT B-COVERS

               The following modification can be made to those phones coming to service
               because of too tight B-cover:

               1. Remove the A-cover and the six screws. Remove the lightguide assembly
                  and PCB. Then cut away the guiding pin in the top part of the D-cover,

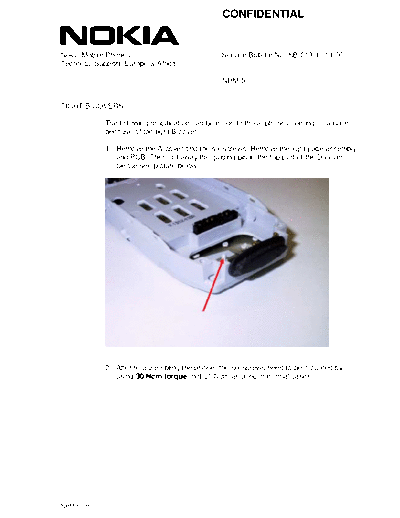

                  please see picture below




               2. After re-assembling the phone, the six screws need to be mounted by
                  using 30 Ncm torque (not 21 Ncm as used in normal cases).




NHM-5 SB-013
