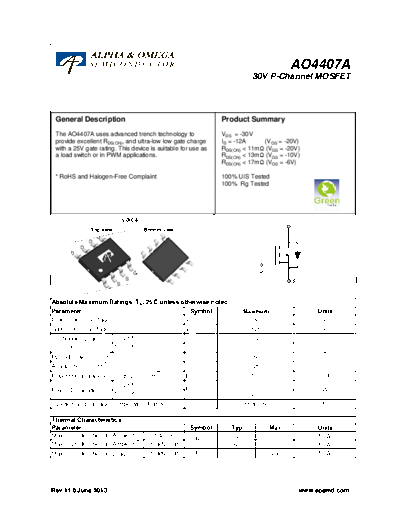

                                                                                            AO4407A
                                                                              30V P-Channel MOSFET



 General Description                                               Product Summary
 The AO4407A uses advanced trench technology to                    VDS = -30V
 provide excellent RDS(ON), and ultra-low low gate charge          ID = -12A     (VGS = -20V)
 with a 25V gate rating. This device is suitable for use as        RDS(ON) < 11m (VGS = -20V)
 a load switch or in PWM applications.                             RDS(ON) < 13m (VGS = -10V)
                                                                   RDS(ON) < 17m (VGS = -6V)

 * RoHS and Halogen-Free Complaint                                 100% UIS Tested
                                                                   100% Rg Tested




                              SOIC-8
                                                                                            D
               Top View                Bottom View
                 D
              D
          D
      D


                                   G                                            G
                               S                                                            S
                          S
                      S

Absolute Maximum Ratings TA=25
