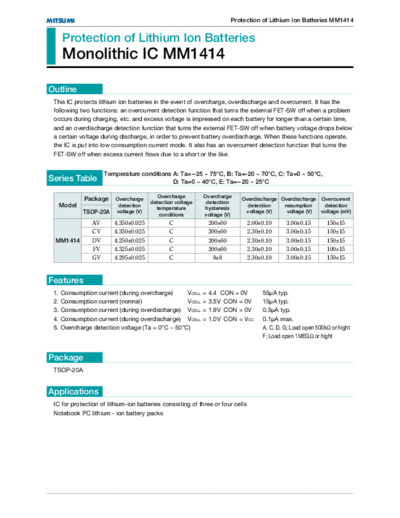

Image preview - the first page of the document



>> Download MM1414 documenatation <<

Text preview - extract from the document

MITSUMI                                                               Protection of Lithium Ion Batteries MM1414


    Protection of Lithium Ion Batteries
    Monolithic IC MM1414

Outline
 This IC protects lithium ion batteries in the event of overcharge, overdischarge and overcurrent. It has the
 following two functions: an overcurrent detection function that turns the external FET-SW off when a problem
 occurs during charging, etc. and excess voltage is impressed on each battery for longer than a certain time,
 and an overdischarge detection function that turns the external FET-SW off when battery voltage drops below
 a certain voltage during discharge, in order to prevent battery overdischarge. When these functions operate,
 the IC is put into low consumption current mode. It also has an overcurrent detection function that turns the
 FET-SW off when excess current flows due to a short or the like.


                     Temperature conditions A: Ta=-25 ~ 75
