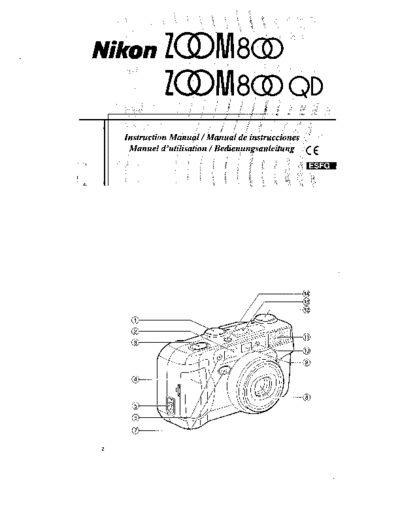

Image preview - the first page of the document
>> Download zoom800im documenatation <<
Text preview - extract from the document
MAIN FEATURES - If the built-in flash does not operate, do not touch
the internal parts of the camera, as it contains a
0 Powerful 38-130mm multi coated zoom lens with as- high voltage circuit. Take the camera lo an au-
pheric lens elements thorized Nikon dealer or service center.
l 7-zone passive multi AF in 1024 measuring steps
0 High-power zoom flash for tele shooting
0 Easy to access 2-dial control with illuminator ATTACHING THE STRAP
0 Creative modes (Portrait, Action, Night Scene, Land-
1. Insert the small loop at the end of the strap under
scape, etc. )
the Strap Holder. (Fig. 1 0)
0 Compact and light weight body 2. Insert the other end of the strap through the loop to
tie the strap onto the Strap Holder. (Fig. 1 0)
BEFORE USING
- A fast film such as IS0 200 or IS0 400 is recom- INSERTING THE BATTERIES
mended to prevent blurriness and to obtain a longer The camera will not operate unless the batteries are in-
flash range.
stalled. Make sure that the batteries are installed cor-
- When focusing is difficult or impossible, AF Monitor rectlv.
blinks to warn you that an out-of-focus picture will
1. Ir&eri a coin in the slot of the Battery Compartment
occur. Set Landscape mode or use Focus Lock func- Cover to open it. (Fig. 2)
tion. (page 24, 29) 2. Slide the inner cover latch in the direction indicated
- Do not hold the camera by the lens.
to open. (Fig. 3)
- Before taking important pictures (at weddings, on 3. Insert the recommended' 3 volt lithium batteries,
trips abroad, etc. ) test the camera and learn how it
checking that the + and - are inserted correctly.
works.
(Fig. 4)
4. Press down the inner cover to close.
CAUTIONS 5. Close the Battery Compartment Cover by pushing it
- This camera has a high voltage circuit. Because in the direction indicated unttl it locks firmly in place.
it is dangerous, do not attempt to take the cam-
(Fig. 5)
era apart. * Do not remove the batteries from the camera until
you are ready to replace them.
18
For ZOOM800 QD only; The date display [ " 0 O]00 2. When Ihe batteries are exhausted, the o symbol
blinks when the batteries are replaced. Ey pressing will blink in the LCD Panel. Replace with new batter-
either the Mode Button, Select Button, or Set But- ies.
ton, [l 1 ` will be displayed. Reset the correct time
951 * As the battery voltage is reduced in extremely cold
and date. temperatures, the Ic1 symbol may blink. You may
When replacing the batteries, do so as quickly as be able to use the camera if you remove the batter-
possible to avoid erasing camera memory. We rec- ies and warm them up.
ommend replacing the batteries when there is no * In the following cases, battery voltage is insufficient
film in the camera. and the batteries need lo be replaced.
The batteries can explode or cause burns if dis- 1) When the power does not turn on.
posed of in fire or if shorted, disassembled, 2) When the 0 symbol blinks.
heated or recharged. 3) When the shutter does not release.
4) When film advance or rewind do not function.
l Recommended Replacement 3V Lithium Batteries: 5) When the Self-Timer does not function.
CR-123A, or equivalent X 2. * To avoid tripping the shutter inadvertently and wast-
ing battery power, always turn the power off when
you are not taking pictures.
TURNING THE POWER ON/OFF * If the camera is not operated (buttons, dials and le-
The power is turned on or off by selecting ON or OFF ver) for about 5 minutes, the power automatically
on the Drive Dial. (Fig. 6) turns off, the LCD Panel display disappears and the
When the power is turned on, the lens moves from the lens returns to the storage position. The purpose of
storage position to the wideangle position, and the cam- this function is to prevent waste of battery power.
era is set automatically lo the mode selected on the The power will turn on again by operating any of the
Mode Dial. buttons, dials or lever.
CHECKING THE BAlTERlES LOADING THE FILM
1. When the batteries are nearly exhausted, 0 will Always avoid direct sunlight when loading the film.
appear on the LCD Panel. Replace wilh new batter- 1. Push the Back Cover Latch downward to open.
ies as soon as possible. (Fig. 7)
19
