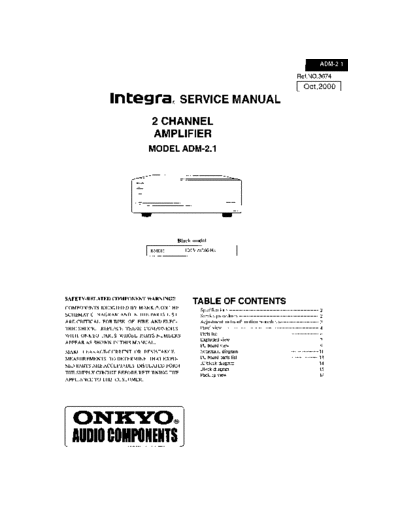

Image preview - the first page of the document
Onkyo  ADM-2.1 SM

>> Download Onkyo ADM-2.1 SM documenatation <<

Text preview - extract from the document
                  Model No.                   Destination        Factory           Category
ADM-2.1(B)                                       ???              ?ML               Amp
                                               Overseas           ?ML               Amp

Dimension of Set
435 W?145 H?316 D mm                           N.W. 18.7 lbs.?8.5 kg?
                                               Net Weight
17 1/8 W 5 11/16 H 12 7/16 D inch
                                              G.W. 21.4 lbs.?9.7 kg?
                                              Gross Weight
Inner dimension of Carton                     CARTON TYPE: ???? Single Wall
??496 w?195 h?401 d mm

Outer dimension of Carton                     M3?1.59 ?         (0.045 m3)
??511 W?215 H?411 D mm

W =435      H =145       D =316       a=      b =130        c =4.3      e =290.5   f =21.2
g =1        i =185       j =49.5      k =47   l =433        m =96.5     n =138

                      Content of Change
