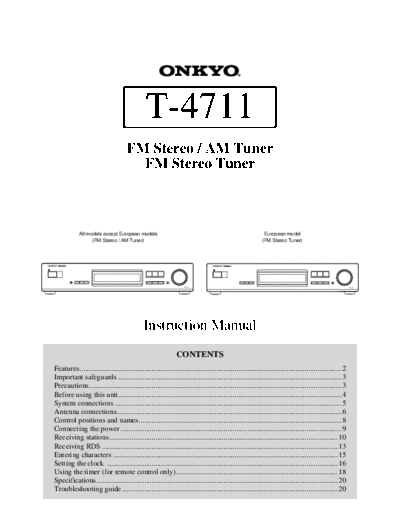

Image preview - the first page of the document
>> Download hfe_onkyo_t-4711_en documenatation <<
Text preview - extract from the document
T-4711
FM Stereo / AM Tuner
FM Stereo Tuner
All models except European models European model
(FM Stereo / AM Tuner) (FM Stereo Tuner)
T-4711 T-4711
Instruction Manual
CONTENTS
Features..............................................................................................................................................2
Important safeguards .........................................................................................................................3
Precautions.........................................................................................................................................3
Before using this unit.........................................................................................................................4
System connections ...........................................................................................................................5
Antenna connections..........................................................................................................................6
Control positions and names..............................................................................................................8
Connecting the power ........................................................................................................................9
Receiving stations ............................................................................................................................10
Receiving RDS ................................................................................................................................13
Entering characters ..........................................................................................................................15
Setting the clock .............................................................................................................................16
Using the timer (for remote control only)........................................................................................18
Specifications...................................................................................................................................20
Troubleshooting guide .....................................................................................................................20
Thank you for your purchase of the Onkyo T-4711 Tuner.
Please read this manual thoroughly before making connections and turning power on.
Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your
new Tuner.
Please retain this manual for future reference.
Features Declaration of Conformity
We, ONKYO EUROPE
s RDS (AF, PS, PTY, TP, RT, CT, TA) ELECTRONICS GMBH
INDUSTRIESTRASSE 18/20
s 40 FM Random presets / 4 Groups 82110 GERMERING,
GERMANY
s 3 Modes APR (Auto Precision Reception) IF Band,
High Blend, Mode declare in own responsibility, that the ONKYO product described
in this instruction manual is in compliance with the corresponding
s 4 Groups Memory technical standards such as EN55013,EN55020,EN60555-2,
s Dial Tuning Knob EN60065
s FM Cable with 25kHz step Tuning GERMERING,GERMANY
s 10-Segment Signal Strength Bar H. YAMAZOE
s 4 Mode Timer Function (Once, WeekDay, WeekEnd, ONKYO EUROPE ELECTRONICS GMBH
Sleep)
s ACCUCLOCK
a. e.
s 7 Remote Compatible
Remarks:
FM & AM available (For USA, Canada and Asia market)
FM only (For Europe market)
FOR CANADIAN MODEL: b. f.
(POUR LE MODELE CANADIEN)
q For models having a power cord with a polarized plug.
c.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
