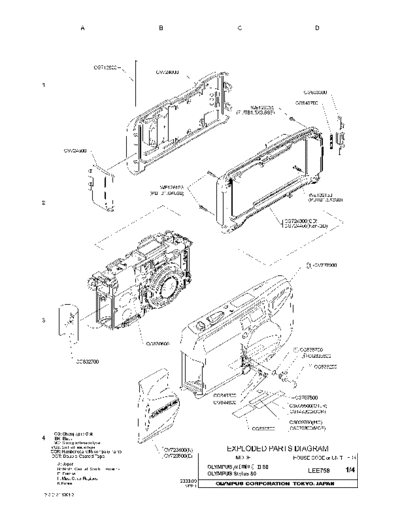

Image preview - the first page of the document
>> Download OLYMPUS_STYLUS-80 documenatation <<
Text preview - extract from the document
OLYMPUS [Mju:]-lll 80 1/2
OLYMPUS Stylus 80
PARTS LIST LEE758
PARTS NO. NAME OF PARTS LOCATION PARTS NO. NAME OF PARTS LOCATION
CF673100 CONNECT RUBBER 2 2-A3,B4,B3 CG829900 GUIDE SPRING 4-C3
CG830000 GUIDE SHAFT 4-D3
CG171200 P HOLDER 2-A2 CG830100 GUIDE SHEET 4-C4
CG171300 P HOLDER SPRING 2-B3 CG830200 SPOOL COVER 2-C1
CG177800 RELEASE SW 2-A1,C1 CG830300 BK SW 1 2-C2
CG229000 PL SCREW 2-B3 CG830400 BK SW 2 2-C1
CG336800 THB 1635 2-D4,D3 CG831000 DX LIGHT PROOF 2-A2
CG348100 THB 1630 2-D3,4-A1 CG831200 P SHEET A 4-B4
CG353800 THB 1625 4-C1 CG831400 B TERMINAL M 2-A3
CG361200 36INSULATION 2 2-C2 CG832300 WHEEL HOLDER 2-D3
CG366700 RSW TAPE 2-A1,C1 CG832500 FK GEAR HOLDER 2-C4
CG495100 D SPONGE 2-D1,D3 CG832700 B SHEET 1-A3
CG582601 732WZ PLUNGER SHAFT 2-A2 CG832800 758CONNECT PLATE 2-B4,A3
CG695100 CONNECT PLATE 417 2-B1,D2 CG832900 758CONNECT RUBBER 2-B4,A3
CG707500 SLIDE COVER 1-D4 CG833300 LATCH PLATE 1-D1
CG708900 752P B 2-A2 CG835800 BARRIER SHAFT 1-D3
CG710500 SPOOL PLATE 2 4-D2 CG836200 BARRIER SPRING 1-D3
CG711900 752W TAPE 2-A4 CG838400 758WZ PLUNGER 2-A2
CG712700 SPOOL SHEET 4-D2 CG838500 KB LIGHT PROOF 2-C1
CG713800 HINGE SHAFT 1-A1 CG839300 BK SPACER 2-C1
CG717600 FK GEAR 2-C4 CG839600 AEK TAPE 1-B3
CG728900 CONNECT PLATE S 2-B4,B3 CG839800 PATTERN COVER 1-C4
CG729200 CONNECT RUBBER 417H 2-B1,D2 CG839900 DSW TAPE 2-A2
CG761000 PINION 4-D1 CG843300 CLICK SPRING 1-C4
CG843400 KB LIGHT PROOF 2 2-D2
CG843600 KR LIGHT PROOF 1 2-C4
CG820300 MOVING BARREL 3-C2 CG843700 LATCH SPRING 1-D1
CG820600 FLOAT KEY 3-B1 CG843800 KF HOLDER 3-A3
CG822300 LONG GEAR 3-B3 CG844800 CLICK 1-C4
CG822400 LONG GEAR HOLDER 3-A3
CG822500 2G SPRING 3-C1 CS029700 MC SEAL 1-D4
CG822600 2G PIN 3-B2,C1 CS029800 MC SEAL E 1-D4
CG822700 CAM PIN 3-A2,A3 CS035500 NO SEAL OTJR 1-D4
CG823400 2G MASK R 3-B1 CS149200 NO SEAL OCR 1-D4
CG823500 FLARE MASK 3-A1
CG824000 1Z COVER 3-D2 CV693600 COUPLING GEAR 1 2-D3
CG824100 K LIGHT PROOF 3-A3 CV693700 COUPLING GEAR 2 2-D3
CG827200 WZ BASE PLATE 4-C1 CV693800 COUPLING GEAR 3 2-D3
CG827300 GEAR CASE 4-C1 CV693900 COUPLING GEAR 4 2-D3
CG827400 B TERMINAL P 2-A3 CV694000 RING GEAR 2-C4
CG827600 WZ GEAR 1 4-C1
CG827700 WZ GEAR 2 4-C1 CV722400 SHUTTER 3-D2
CG827800 WZ SUN GEAR 4-A2 CV722500 2G FRAME 3-B2
CG828200 STOPPER 4-A2 CV722600 CAM FRAME 3-B2
CG828300 STOPPER SPRING 4-A2 CV722700 ROTATING RING 3-D3
CG828400 W GEAR 4-C2 CV722800 758 BASE FRAME 3-B4
CG828500 SPOOL 4-C1 CV723400 BARRIER N 1-B4
CG828600 SPOOL TAPE 4-C4 CV723500 BARRIER E 1-B4
CG828700 RW GEAR 4-A2 CV724000 BACK DOOR 1-B1
CG828800 RW IDLE 4-A2 CV724300 REAR FRAME Q 1-D2
- : PARTS STILL AVAILABLE, = : PARTS NO LONGER AVAILABLE,
2004.01 * : COCOM PARTS, : NEW PARTS Rev.3
OLYMPUS [Mju:]-lll 80 2/2
OLYMPUS Stylus 80
PARTS LIST LEE758
PARTS NO. NAME OF PARTS LOCATION PARTS NO. NAME OF PARTS LOCATION
CV724400 REAR FRAME N 1-D2
CV724500 BATTERY COVER 1-A2
CV724700 RING GEAR HOLDER 2-C4
CV724800 GUIDE PLATE B 4-D3
CV725000 GEAR ARM 4-B2
CV725100 RW FORK 4-A3
CV725200 Z SHAFT 4-C2
CV725300 758D FPC 2-C1
CV725400 758W FPC 2-A3
CV725700 Z WHEEL 2-D3
CV726101 VIEWFINDER 2-D2
CV726300 758F FPC 2-C1
CV726600 758M PCB 2-A4
CV726900 758T PCB 2-A1
CV727200 758LCD PCB 2-A1
CV727900 R FRONT COVER 1-D3
DM228100 WZ MOTOR 4-C2
KC257700 M CAPACITOR 2-A2
WE115666 PUK1.4-245SN
WE115105 PUK1.4X4SN
WE115667 PUK1.6-418SN
WE115595 PUK1.6-218SN Rev.2
WE115387 PUK1.6X1.8SN
WE126395 PUTB1.4-125SN
WE126371 PUTB1.4-130SN
WE126307 PUTB1.4-225SN
WE126057 PUTB1.4X2.5SN
WE126312 PUTB1.6-445SN
WE126285 PUTB1.6-450SN
WE126286 PUTB1.6-625SN
WE126055 PUTB1.6X3.5SB
WE126102 PUTB1.6X3.5SN
WE126060 PUTB1.6X3SB
WE126101 PUTB1.6X3SN
WE126081 PUTB1.6X4SN
WE126153 PUTB1.6X6SB
WE126283 PUTB1.6X6SN
WE132022 3PUTB1.6X3.5SN
WE132026 PUTB1.6X4SN
WE307002 ER1.2UO
WE301501 NW1.5-227SZ
- : PARTS STILL AVAILABLE, = : PARTS NO LONGER AVAILABLE,
2004.01 * : COCOM PARTS, : NEW PARTS Rev.3
