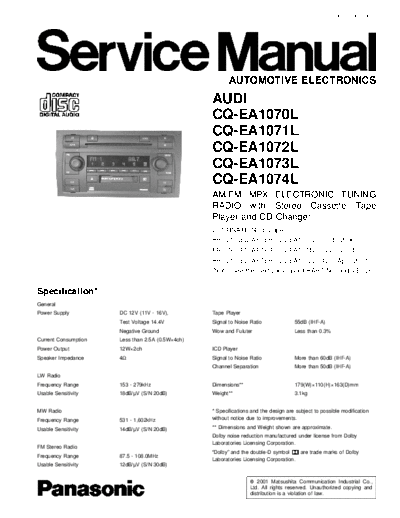

Image preview - the first page of the document
CQ-EA1070_CQ-EA1071_CQ-EA1072_CQ-EA1073_CQ-EA1074


>> Download CQ-EA1070_CQ-EA1071_CQ-EA1072_CQ-EA1073_CQ-EA1074 documenatation <<

Text preview - extract from the document
                                                                                              ORDER No. AED0109021




                                                         AUTOMOTIVE ELECTRONICS
                                                  AUDI
                                                  CQ-EA1070L
                                                  CQ-EA1071L
                                                  CQ-EA1072L
                                                  CQ-EA1073L
                                                  CQ-EA1074L
                                                  AM/FM MPX ELECTRONIC TUNING
                                                  RADIO with Stereo Cassette Tape
                                                  Player and CD Changer
                                                  DESTINATION : Europe
                                                  PRODUCED AFTER (CQ-EA1070L) : Oct., 2000
                                                  PRODUCED AFTER (CQ-EA1071L) : Jan., 2001
                                                  PRODUCED AFTER (CQ-EA1072L-74L) : Apr., 2001
                                                  [Note] See the next page about PART No. and VECLE.


Specification*
General
Power Supply          DC 12V (11V - 16V),         Tape Player
                      Test Voltage 14.4V          Signal to Noise Ratio              55dB (IHF-A)
                      Negative Ground             Wow and Fuluter                    Less than 0.3%
Current Consumption   Less than 2.5A (0.5W
