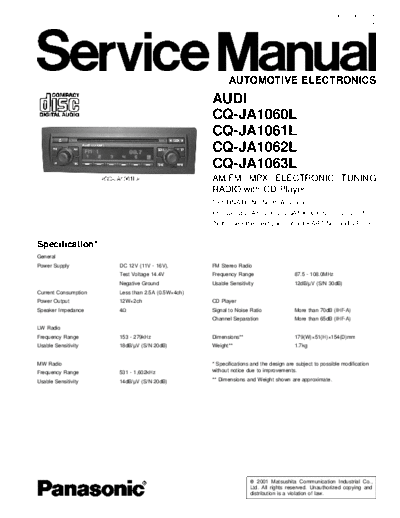

Image preview - the first page of the document
>> Download CQ-JA1060_CQ-JA1061_CQ-JA1062_CQ-JA1063 documenatation <<Text preview - extract from the document ORDER No. AED0111009
I0
AUTOMOTIVE ELECTRONICS
AUDI
CQ-JA1060L
CQ-JA1061L
CQ-JA1062L
CQ-JA1063L
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
DESTINATION : North America
PRODUCED AFTER (CQ-JA1060L-63L) : Jul., 2001
[Note] See the next page about PART No. and VECLE.
Specification*
General
Power Supply DC 12V (11V - 16V), FM Stereo Radio
Test Voltage 14.4V Frequency Range 87.5 - 108.0MHz
Negative Ground Usable Sensitivity 12dB/
