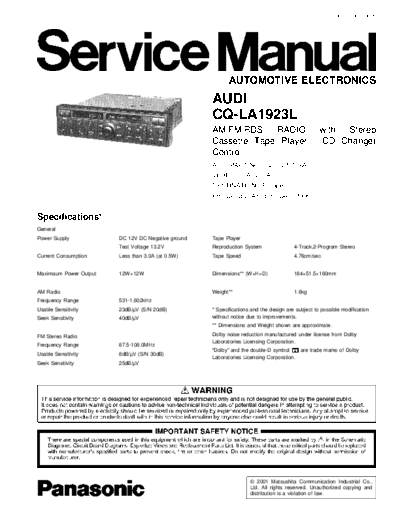

Image preview - the first page of the document
CQ-LA1923


>> Download CQ-LA1923 documenatation <<

Text preview - extract from the document
                                                                                                ORDER No. AED0109020




                                                           AUTOMOTIVE ELECTRONICS
                                                    AUDI
                                                    CQ-LA1923L
                                                    AM/FM/RDS    RADIO     with Stereo
                                                    Cassette Tape Player / CD Changer
                                                    Control
                                                    AUDI PART No. : 8L0 035 186A
                                                    VEHICLE : AUDI A3
                                                    DESTINATION : Europe
                                                    PRODUCED AFTER : Dec., 1999


Specifications*
General
Power Supply            DC 12V DC Negative ground   Tape Player
                        Test Voltage 13.2V          Reproduction System                4-Track,2-Program Stereo
Current Consumption     Less than 3.0A (at 0.5W)    Tape Speed                         4.76cm/sec


Maximaum Power Output   12W
