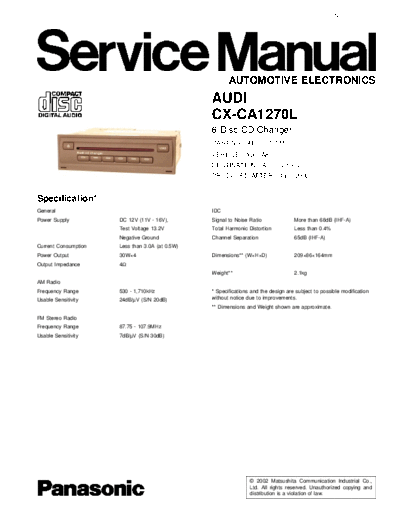

Image preview - the first page of the document
CX-CA1270


>> Download CX-CA1270 documenatation <<

Text preview - extract from the document
                                                                                             ORDER No. AED0209026
                                                                                                                I0




                                                        AUTOMOTIVE ELECTRONICS
                                                 AUDI
                                                 CX-CA1270L
                                                 6-Disc CD Changer
                                                 PART No. : 4E0 035 111
                                                 VEHICLE : Audi A8
                                                 DESTINATION : All Countries
                                                 PRODUCED AFTER : Jan., 2002


Specification*
General                                          IDC
Power Supply          DC 12V (11V - 16V),        Signal to Noise Ratio              More than 68dB (IHF-A)
                      Test Voltage 13.2V         Total Harmonic Distortion          Less than 0.4%
                      Negative Ground            Channel Separation                 65dB (IHF-A)
Current Consumption   Less than 3.0A (at 0.5W)
Power Output          30W
