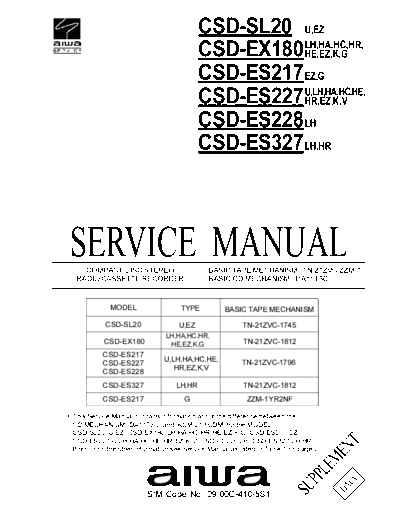

Image preview - the first page of the document
>> Download AIWA_09-00C-410-5S1_CSD-SL20_EX180_ES217_ES227_ES228_ES327_Supplement documenatation <<
Text preview - extract from the document
CSD-SL20 U,EZ
CSD-EX180 LH,HA,HC,HR,
HE,EZ,K,G
CSD-ES217 EZ,G
CSD-ES227 U,LH,HA,HC,HE,
HR,EZ,K,V
CSD-ES228 LH
CSD-ES327 LH.HR
SERVICE MANUAL
COMPACT DISC STEREO BASIC TAPE MECHANISM : TN-21ZVC,ZZM-1
RADIO CASSETTE RECORDER BASIC CD MECHANISM : DA11T3C
MODEL TYPE BASIC TAPE MECHANISM
CSD-SL20 U,EZ TN-21ZVC-1745
LH,HA,HC,HR,
CSD-EX180 HE,EZ,K,G TN-21ZVC-1812
CSD-ES217
U,LH,HA,HC,HE, TN-21ZVC-1796
CSD-ES227
HR,EZ,K,V
CSD-ES228
CSD-ES327 LH,HR TN-21ZVC-1812
CSD-ES217 G ZZM-1 YR2NF
This Service Manual contains information about the difference between the
CD MECHANISM DA11T3C and KSM-213 CDM for the MODEL
NT
CSD-SL20 (U,EZ),CSD-EX180(LH,HA,HC,HR,HE,EZ,K,G),CSD-ES217(EZ,G),
CSD-ES227(U,LH,HA,HC,HE,HR,EZ,K,V),CSD-ES228(LH),CSD-ES327(LH,HR).
ME
If requiring the other information see Service Manual as listed in Table 1 on page 2.
LE A
PP DAT
S/M Code No. 09-00C-410-5S1 SU
BASE MODEL
MODEL NAME S/M Code No.
CSD-SL20 CSD-SL20 09-998-410-5R1
CSD-EX180 CSD-EX180 09-996-409-6R1
CSD-EX180 CSD-EX180 09-999-409-6S2
CSD-EX180 CSD-EX180 09-997-409-6S3
CSD-EX180 CSD-EX180 09-99B-409-6S4
CSD-ES227 CSD-ES227 09-98C-306-8FE
CSD-ES227 CSD-ES227 09-991-403-4R2
CSD-ES217/227<227HR,217EZ> CSD-ES217/227 09-992-403-4R3
CSD-ES227/228<228LH,227HA> CSD-ES217/227/228 09-994-403-4S1
CSD-ES227 CSD-ES227 09-997-403-4S2
CSD-ES227 CSD-ES216/227 09-997-403-4S3
CSD-ES217/227 CSD-ES217/227 09-99B-403-4S4
CSD-ES327 CSD-ES327 09-997-404-7R1
Table 1
2
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the CAUTION
instructions below when servicing. Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
WARNING!! hazardous radiation exposure.
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS ATTENTION
NECESSARY TO CONFIRM LASER BEAM EMISSION. Lutillisation de commandes, r ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
