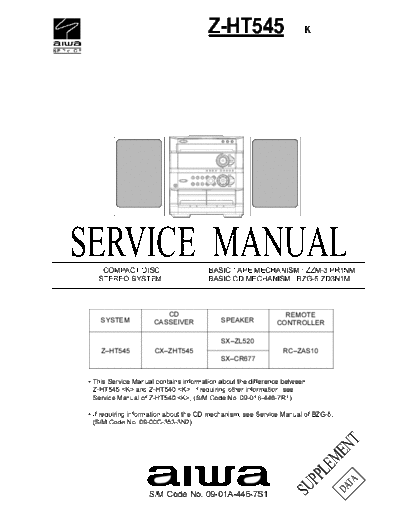

Image preview - the first page of the document

>> Download cxz-ht545_203 documenatation <<

Text preview - extract from the document
                                      Z-HT545                        K

    COMPACT DISC                      BASIC TAPE MECHANISM : ZZM-3 PR1NM
   STEREO SYSTEM                      BASIC CD MECHANISM : BZG-5 ZD3N1M

                        CD                                    REMOTE
    SYSTEM           CASSEIVER            SPEAKER           CONTROLLER

    ZHT545           CXZHT545                                 RCZAS10

 This Service Manual contains information about the difference between
 Z-HT545  and Z-HT540 . If requiring other information, see
 Service Manual of Z-HT540 , (S/M Code No. 09-016-446-7R1).

 If requiring information about the CD mechanism, see Service Manual of BZG-5,
 (S/M Code No. 09-00C-353-3N2).

                                                                         LE A
                                                                       PP DAT
                   S/M Code No. 09-01A-446-7S1                       SU

Tuning range                87.5 MHz to 108 MHz                     Track format                   4 tracks, 2 channels stereo
Usable sensitivity (IHF)    13.2 dBf                                Frequency response             50 Hz  10000 Hz
Antenna terminals           75 ohms (unbalanced)                    Recording system               AC bias
                                                                    Heads                          Deck 1 : Playback head x 1
                                                                                 Deck 2 : Recording/playback x 1,
Tuning range                531 kHz to 1602 kHz (9 kHz step)                                                Erase head x 1
                            530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity          350
