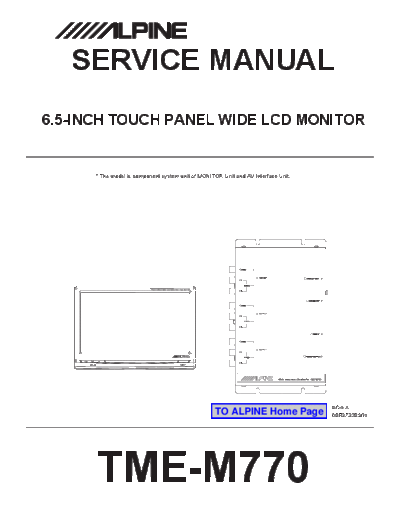

Image preview - the first page of the document
>> Download ALPINE TME-M770 documenatation <<
Text preview - extract from the document
SERVICE MANUAL
6.5-INCH TOUCH PANEL WIDE LCD MONITOR
* The model is component system unit of MONITOR Unit and AV Interface Unit.
8/04-A
TO ALPINE Home Page 68E37328S01
TME-M770
The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
The symbols and their meanings follow.
If you ignore this symbol and handle the product incorrectly or unsafely,
Warning serious injury or death may result.
If you ignore this symbol and handle the product incorrectly or unsafely,
Caution injury or only material damage may result.
*The following symbols indicate two levels of cautions.
When you see this symbol, you have to be very careful.
When you see this symbol, you have to follow the instructions there.
Warning
Do not look squarely into the laser light Fuse Caution
coming from the pickup. Always use a designated fuse.
You may loose you sight. Use of an incorrect fuse may result in a fire.
Caution
Do not allow wiring to be caught in the Battery Caution
screw/chassis. Use the designated battery.
If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the
cause a short circuit, resulting in a fire. battery.
An incorrect battery or an improperly connected
or seated battery may result in a fire.
High Temperature Caution Designated Parts Caution
Touching the heat sink may cause severe burns. Look up the part list and ensure that only
designated parts are used to prevent problems or
accidents.
Reverse Power Supply Connections or Wiring Caution
Misconnections Caution Ensure that the wiring is correct when rewiring to
Reverse power supply connections or prevent problems with ignition/breakdown.
misconnections may cause ignition problems and
smoke may result.
Soldering Caution Wear Gloves
Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury
burns. from the end face of the metal.
-2-
TME-M770
Contents
Packing Assembly Parts List 4
Packing Method View 4
Specifications 5,6
System Diagram 7 to 14
Adjustment Procedures 15 to 18
Extension Cable 19
20 to 29
30 to 44
NOTE : Due to continuing product improvement, specifications and designs are subject to
change without notice.
-3-
TME-M770
Packing Assembly Parts List
Symbol Part No. Description Symbol Part No. Description
No. No.
101 01E37285S01 ASSY DIN CABLE #1 108 13E37289S01 PANEL,FACE
#1 102 01E37286S01 ASSY CONNECTOR 10P #1 109 75E37290S01 SPONGE,CUSHION-CASE
$1 102 01E37297S01 ASSY CONNECTOR #1 110 75E37291S01 SPONGE,CUSHION-B
#1 103 68-00493Z15 OWNER'S MANUAL #1 111 75E37292S01 SPONGE,CUSHION-A
$1 103 68-00493Z17 OWNER'S MANUAL #1 112 55E37293S01 CASE,LOCK
104 03E36299S01 SCR,M4X14 TPG1(BLK) #1 113 01E37343S01 ASS'Y INNER CASE,RDM 770AE
105 75E37287S01 TAPE,PAD-MAGIC #1 114 37E37344S01 BIND,WIRE
#1 106 03E33860S01 SCR,M3X6 MCH(BLK) $1 115 01E37298S01 ASS'Y MONI-STAND KIT;RDM770GE
#1 107 45E37288S01 LEVER,MONITOR $1 116 01E37299S01 ASS'Y L-TYPE BKT;RDM770GE
NOTE:#1:For North American Model Only, $1:For General Foreign Model Only, Others:Common.
Packing Method View
101 103 NOTE:#1:For North American Model Only,
$1:For General Foreign Model Only,
Others:Common.
$1 #1 #1
115 #1 #1 106 114
X4 X4 $1
107 109
X2 X4 116
102
104
X4
105 X2
#1
108
AV Interface Unit
770
SUPPLY
E-M
IN
POWER
RGB
TM
OR
OUT
PHONE
NIT
OUT
DISPLAY
MO
E LCD
WID
EL
PAN
CH
TOU
AUX IN 1
AUX IN 2
AUX OUT
AUDIO
VIDEO
AUDIO
#1
R
L
VIDEO
AUDIO
R
L
VIDEO
R
L
110 to 113
#1 110
MONITOR Unit
-M770
TME
ITOR
MON
X1
LCD
L WIDE
H PANE
TOUC
#1 111
ER
POW
X1
#1 112
#1 113 X1
X1
-4- TO CONTENTS
TME-M770
Specifications
Screen Size ......................................................................................................................................... 6.5-Type Wide
Display System ........................................................... Low Reflection Rear Projection Type TN Liquid Crystal Panel
Drive System ........................................................................................... Active Matrix Drive, Nomally White Display
Number of Picuture Elements ...................................................................... 280,000 pcs. (H : 1,200 X V : 234 Dots)
Light Source ........................................................ Internal Optical System (U-Type Cold Cathode Fluorescent Tube)
