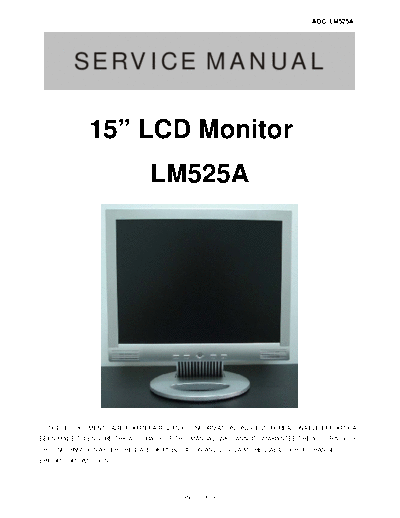

Image preview - the first page of the document
>> Download LM525A documenatation <<
Text preview - extract from the document
AOC LM525A
SERVICE MANUAL
15" LCD Monitor
LM525A
THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS
BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF
THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RE LIABILITY FOR CHANGES,
ERRORS OR OMISSIONS.
Page 1 of 49
AOC LM525A
Table of Content
Revision List......................................................................................................................... 3
1. Monitor Specifications........................................................................................................ 4
2. LCD Monitor Description..................................................................................................... 5
3. Operating Instructions........................................................................................................ 6
3.1 General Instructions......................................................................................................... 6
3.2 Front Panel Control.......................................................................................................... 6
3.3 Adjusting the Picture........................................................................................................ 7
4. Input/Output Specification................................................................................................... 9
4.1 Input Signal Connector..................................................................................................... 9
4.2 Factory Preset Display Modes............................................................................................ 10
4.3 Power Supply Requirements............................................................................................. 10
4.4 Panel Specification.......................................................................................................... 11
4.4.1 Panel Feature........................................................................................................... 11
4.4.2 Display Characteristics............................................................................................... 11
4.4.3 Optical Characteristics................................................................................................ 12
4.4.4 Parameter Guide Line For CCFL Inverter........................................................................ 12
5. Block Diagram................................................................................................................... 13
5.1 Monitor Exploded View..................................................................................................... 13
5.2 Software Flow Chart......................................................................................................... 14
5.3 Electrical Block Diagram................................................................................................... 16
5.3.1 Main Board.............................................................................................................. 16
5.3.2 Inverter/Power Board.................................................................................................. 17
6. Schematic......................................................................................................................... 18
6.1 Main Board.................................................................................................................... 18
6.2 Power Board.................................................................................................................. 24
6.3 Audio Board................................................................................................................... 26
7. PCB Layout...................................................................................................................... 27
7.1 Main Board.................................................................................................................... 27
7.2 Power Board.................................................................................................................. 28
7.3 Audio Board................................................................................................................... 28
7.4 Keypad Board................................................................................................................ 28
8. Maintainability................................................................................................................... 29
8.1 Equipments and Tools Requirement.................................................................................... 29
8.2 Trouble Shooting............................................................................................................. 30
8.2.1 Main Board............................................................................................................... 30
8.2.2 Power /Inverter/Board................................................................................................. 33
8.2.3 Keypad Board........................................................................................................... 35
9. White-Balance, Luminance adjustment................................................................................. 36
10. EDID Content................................................................................................................... 37
11. BOM LIST......................................................................................................................... 38
Page 2 of 49
AOC LM525A
Revision List
Revision Date Change Description
A00 Oct-29-05 Original Revision
Page 3 of 49
AOC LM525A
1. MONITOR SPECIFICATIONS
Driving system TFT LCD
Size 38.1cm(15.0")
Type HSD150MX15HSD
Pixel pitch 0.297mm(H) x 0.297mm(V)
Viewing angle 160(H) 115(V) (CR>5)
LCD Panel
Luminance 250cd/ m2
Contrast Ratio 500:1
Response time 25ms (typ)
Display colors 16 million (6 bit + FRC)
R G B Analog 0.7Vp-p
H/V separate TTL level
Input signals H/V composite TTL level
Horizontal frequency 30kHz◦ Jabse Service Manual Search 2023 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
