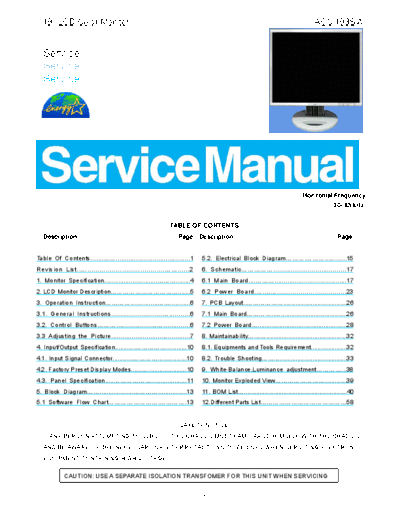

Image preview - the first page of the document
193SW


>> Download 193SW documenatation <<

Text preview - extract from the document
   19" LCD Color Monitor                                                                                                            AOC 193SW


   Service
   Service
   Service




                                                                                                                              Horizontal Frequency
                                                                                                                                         30- 83 kHz


                                                             TABLE OF CONTENTS
   Description                                                   Page Description                                                              Page


Table Of Contents.....................................................1    5.2. Electrical Block Diagram...............................15
Revision List.......................................................2      6. Schematic.....................................................17
1. Monitor Specification...............................................4   6.1 Main Board....................................................17
2. LCD Monitor Description........................................5        6.2 Power Board..............................................23
3. Operation Instruction............................................6      7. PCB Layout.........................................................26
3.1. General Instructions.........................................6        7.1 Main Board.......................................................26
3.2. Control Buttons...............................................6       7.2 Power Board.....................................................28
3.3 Adjusting the Picture..........................................7       8. Maintainability........................................................32
4. Input/Output Specification.......................................10     8.1. Equipments and Tools Requirement.....................32
4.1. Input Signal Connector.........................................10     8.2. Trouble Shooting................................................33
4.2. Factory Preset Display Modes................................10        9. White-Balance,Luminance adjustment...............38
4.3. Panel Specification...........................................11      10. Monitor Exploded View.....................................39
5. Block Diagram.....................................................13    11. BOM List...............................................................40
5.1 Software Flow Chart......................................13            12.Different Parts List..........................................58


                                                                 SAFETY NOTICE
     ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
   AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
   EQUIPMENT CONTAINING HIGH VOLTAGES.

            CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING


                                                                           1
19" LCD Color Monitor                                          AOC 193SW

                              Revision List

      Version      Date       Revision History     TPV Model Name
       A00       Feb.-26-07     Initial release   T95MM4HBWCA2NS
       A01       May.-14-07    Add new BOM        T95MM4HCWCA1N
       A02       May.-18-07    Add new BOM        T95MM4DCWCA1N
       A03       Oct.-30-07    Add new BOM        T95MM4HCWCA3NN




                                       2
19" LCD Color Monitor                                                                                   AOC 193SW
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The special
tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods
may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT
EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which
service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.


WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics might create shock,
fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC. AOC
assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the
panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person's body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)




                                                             3
19" LCD Color Monitor                                                                      AOC 193SW
1. Monitor Specification

            Items                                        Description

                      Driving system                      TFT Color LCD

                      Size                                48 cm (19.0")

                      Panel                               M190A1-L02

                      Display area                        414.36 (H) x260.45 (V) (19.0")

    LCD Panel         Pixel pitch                         0.285mm(H) x 0.285mm(V)

                      Viewable angle                      170
