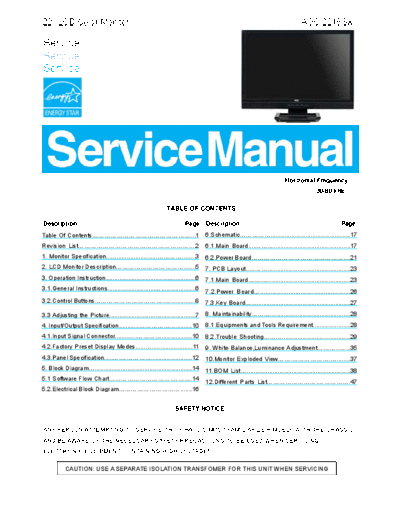

Image preview - the first page of the document
>> Download 2216Sw documenatation <<
Text preview - extract from the document
22" LCD Color Monitor AOC 2216Sw
Service
Service
Service
Horizontal Frequency
30-80 kHz
TABLE OF CONTENTS
Description Page Description Page
Table Of Contents...................................................1 6.Schematic.............................................................17
Revision List..........................................................2 6.1.Main Board..........................................................17
1. Monitor Specification..................................................3 6.2.Power Board.................................................21
2. LCD Monitor Description........................................5 7. PCB Layout...........................................................23
3. Operation Instruction....................................................6 7.1.Main Board..........................................................23
3.1.General Instructions...................................................6 7.2.Power Board......................................................26
3.2.Control Buttons....................................................6 7.3.Key Board.............................................................27
3.3 Adjusting the Picture..................................................7 8. Maintainability........................................................28
4. Input/Output Specification........................................10 8.1.Equipments and Tools Requirement......................28
4.1.Input Signal Connector...........................................10 8.2.Trouble Shooting.................................................29
4.2.Factory Preset Display Modes.................................11 9. White-Balance,Luminance Adjustment.................35
4.3.Panel Specification................................................12 10.Monitor Exploded View.....................................37
5. Block Diagram............................................................14 11.BOM List...............................................................38
5.1 Software Flow Chart.........................................14
12.Different Parts List.........................................47
5.2.Electrical Block Diagram.....................................16
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
22" LCD Color Monitor AOC 2216Sw
Revision List
Version Date Revision History TPV Model Name
TC7CMADCLWA1NN
A00 Oct.-23-2007 Initial release TC7CMADLLWCKNN
TC7CMADBLWA6NN
A01 Mar.-25-2008 Add new BOM TC7CMADBLWA5NN
A02 May.-06-2008 Add new BOM TC7CMADKLWA1NN
A03 Dec.-25-2008 Add new BOM TC7CMADCLWA2NN
2
22" LCD Color Monitor AOC 2216Sw
1. Monitor Specification
Model number 2216Sw
Driving system TFT Color LCD
Viewable Image Size 548mm diagonal
Pixel pitch 0.277mm(H) x 0.277mm(V)
LCD Panel
Video R, G, B Analog interface
Separate Sync. H/V TTL
Display Color 16.7 million Colors
Dot Clock 165 MHz
Horizontal scan range 30 kHz - 80 KHz
Horizontal scan Size(Maximum) 464.94mm
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 290.58mm
Optimal preset resolution 1680 x 1050 (60 Hz)
Highest preset resolution 1680 x 1050 (60 Hz)
Resolution
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15pin
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive
Power Source 100~240VAC, 47~63Hz
Active < 49W
Power Consumption
Standby < 2W
Connector Type 15-pin Mini D-Sub
Dimensions & Weight:
Height (with base) 398.6(404.6) mm
Physical
Width 505.8 mm
Characteristics
Depth 80.7 mm
Weight (monitor only) 5 kg
Weight (with packaging) 7 kg
Environmental Temperature:
