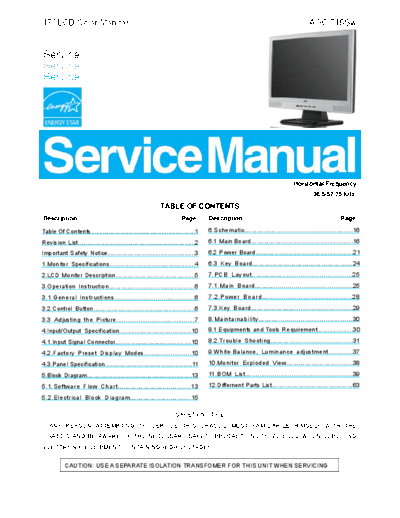

Image preview - the first page of the document
>> Download 716Sw documenatation <<
Text preview - extract from the document
17" LCD Color Monitor AOC 716Sw
Service
Service
Service
Horizontal Frequency
36.5-57.75 kHz
TABLE OF CONTENTS
Description Page Description Page
Table Of Contents..........................................................1 6.Schematic......................................................16
Revision List.................................................................2 6.1 Main Board.........................................................16
Important Safety Notice...............................................3 6.2 Power Board........................................................21
1.Monitor Specifications...............................................4 6.3 Key Board................................................24
2.LCD Monitor Description........................................5 7.PCB Layout................................................25
3.Operation Instruction............................................6 7.1.Main Board.................................................25
3.1.General Instructions.........................................6 7.2.Power Board..........................................28
3.2.Control Button......................................................6 7.3.Key Board....................................................29
3.3 Adjusting the Picture..........................................7 8.Maintainability.............................................30
4.Input/Output Specification.......................................10 8.1.Equipments and Tools Requirement.....................30
4.1.Input Signal Connector..........................................10 8.2.Trouble Shooting..........................................31
4.2.Factory Preset Display Modes.........................10 9.White-Balance, Luminance adjustment.............37
4.3.Panel Specification...............................................11 10.Monitor Exploded View.................................38
5.Block Diagram.........................................................13 11.BOM List........................................................39
5.1.Software Flow Chart...................................13 12.Differnent Parts List........................................63
5.2.Electrical Block Diagram.............................15
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
17" LCD Color Monitor AOC 716Sw
Revision List
Revision Date Revision History TPV Model
T77CMBNQLWA2N
T77CMBNPLWXMF
A00 Apr.-22-2007 First Version Release
T77CMBNPLWXMN
T77CMBNQLWA2F
A01 May-08-2007 Add CKD BOM T77CMBDQLWAO2
A02 Jul.-30-2007 Add new BOM T77CMBDCLWGGN
A03 Oct.-04-2007 Add new BOM T77CMBDCAWA2NN
A04 Oct.-30-2007 Add new BOM T77CMBDLLWMGN
T77CMBDMAWPGNN
A05 Mar-16-2008 Add new BOM
T77CMBDCAWSPNN
T77CMBDCAWJBNN
A06 May-11-2008 Add new BOM
T77CMBDMAWSDNN
2
17" LCD Color Monitor AOC 716Sw
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics, may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person's body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
17" LCD Color Monitor AOC 716Sw
1. Monitor Specifications
Model number 716Sw
Driving system TFT Color LCD
Size 39.5 cm ( 17" 16:9)
Pixel pitch 0.291mm(H) x 0.291mm(V)
LCD Panel
Video R, G, B Analog interface
Separate Sync. H/V TTL
Display Color 262K Colors
Dot Clock 65.49 MHz
Horizontal scan range 36.5 kHz - 57.75 KHz
Horizontal scan Size(Maximum) 372.5 mm
Vertical scan range 50 Hz - 75 Hz
Vertical scan Size(Maximum) 209 mm
Optimal preset resolution 1280 x 720 (60 Hz)
Highest preset resolution 1280 x 720 (60 Hz)
Resolution
Plug & Play VESA DDC2B
Input Connector D-Sub 15pin
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive
Power Source 100~240VAC, 47~63Hz
Active < 45W
Power Consumption
Standby < 1W
Connector Type 15-pin Mini D-Sub
Signal Cable Type Detachable
Physical Dimensions & Weight:
Characteristics Height (with base)x Width x Depth 319.2mmx404.8mmx210mm
Weight (monitor only) 3.2 kg
Weight (with packaging) 4.2 kg
Temperature:
Operating 0◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
