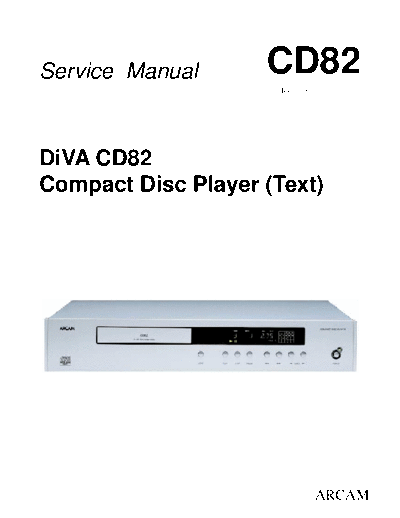

Image preview - the first page of the document
>> Download Arcam-CD-82-Service-Manual documenatation <<
Text preview - extract from the document
Service Manual CD82
Issue 1.0
DiVA CD82
Compact Disc Player (Text)
ARCAM
Contents List
Section Issue
Service guide
! Technical specification -
! CD82 upgrade instructions -
Main board L934
! Circuit description -
! Component overlay 5.0
! Parts list 4.1
! Circuit diagrams 4.1
DAC board L949
! Component overlay 3.0
! Parts list 3.05
! Circuit diagrams 3.0
Mechanical
Mechanical parts list -
Service Guide
Contents
! Technical
specification
! CD82 Upgrade fitting
instructions
CD82 Technical Specifications
Digital to Analogue conversion
DAC Dual mono 24 bit Wolfson
Laser pick-up 3 beam
Laser wavelength 780nm
Numeric aperture 0.45
Dynamic range 106dB
Signal to noise ratio (CCIR) >100dB
Harmonic distortion (0dB, 1kHz) <0.005%
Frequency response (+-0.5dB) 5Hz-20kHz
Output level (0dB) 2.3Vrms
Output impedance 50 ohm
Minimum recommended load 5k ohm
General
Digital output connection 75 ohm co-axial
Power consumption 35VA
Dimensions (including feet) W430 x D290 x H84mm
Weight (net) 5.5kg
Weight (packed) 7.0kg
Supplied accessories Mains lead
CR314 remote control
2 x AAA batteries
DiVA CD82 UPGRADE FITTING 4. Take static precautions first. With the aluminium
extrusion of the CD82 DAC module uppermost fit the
INSTRUCTIONS flex foils from the module into the appropriate sockets
in the main board, ensuring they are pushed fully home.
You may find it helps to slide the module into the unit
Compatible with: so that the audio output sockets fit through the holes in
Alpha 7, 7SE, 8, 8SE CD players the rear panel and angle the module slightly upwards to
achieve this.
DiVA CD72, CD72 (text) CD players
5. Push the module down firmly on to the support pillars,
