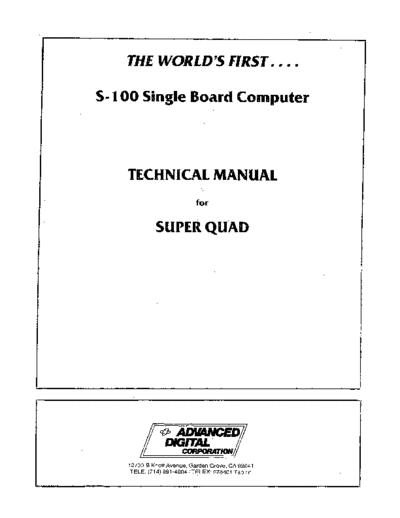

Image preview - the first page of the document
ADC_Super_Quad_Technical_Manual_1981


>> Download ADC_Super_Quad_Technical_Manual_1981 documenatation <<

Text preview - extract from the document
   THE WORLD'S FIRST . ...

S-100 Single Board Computer




    TECHNICAL MANUAL
                           for


             SUPER QUAD




    12700-8 Knott Avenue, Garden Grove, CA 92641
     TELE: (714) 891-4004/ TELEX: 678401 Tabirin
                                INTRODUcrION


ADVANCED DIGITAL CORPORATION is proud to introduce the SUPER QUAD.
The SUPER QUAD is a Z80 based single board computer designed to be
a bus master in an SIOO bus system.      The SUPER QUAD SOC has all the
hardware needed to run a single user CP/M system or 2 user MP/M
system with up to 4 external floppy disk drives and an external
Centronics parallel interface printer all on one board.
The board also runs with TURBO-LOS Un.
The SUPER QUAD SEC contains:


          1)    Z-80A cpu                      (4 MHZ)
           2)   Floppy disk controller         (up to 4 drives 8" or 5!:i" )
           3)   64K of dynamic merrory         (16K bank selectible)
           4)   2K or 4K of shadow eprom       (2716 or 2732)
           5)   2 serial ports                 (Z80A SIO opt. syncronous)
           6)   2 12 bit parallel ports,       (Z80A PIO)
                one of which can be used
                for SIOO vectored interrupts
           7)   Real   t~e   interrupt clock   (Z80A CTC)
           8)   SIOO extended address Al6-A23


ONE YEAR WARRANTY.




*Note:   Items 5 and 6 require external adaptation for RS-232 and
         Centronics.    The adapter boards are 2 x 2" and are called
         PS NET.   They hoop up to the back of the main frame with
         a DB-25 connector.




                                         1
                                   TABLE OF CONTENTS
                                                                                                                    Page
Introduction   .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .. .      1

Table of Contents
