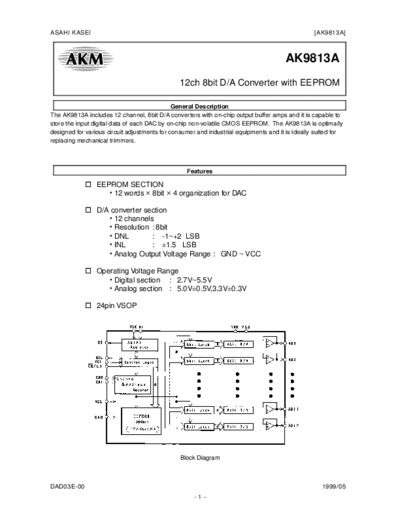

>> Download AK9813AF - 12ch 8bit DA Converter with EEPROM - Asahi Kasei Microsystems documenatation <<

Text preview - extract from the document

ASAHI KASEI                                                                                      [AK9813A]



                                                                                      AK9813A
                                               12ch 8bit D/A Converter with EEPROM

                                              General Description
The AK9813A includes 12 channel, 8bit D/A converters with on-chip output buffer amps and it is capable to
store the input digital data of each DAC by on-chip non-volatile CMOS EEPROM. The AK9813A is optimally
designed for various circuit adjustments for consumer and industrial equipments and it is ideally suited for
replacing mechanical trimmers.




                                                  Features

             EEPROM SECTION
