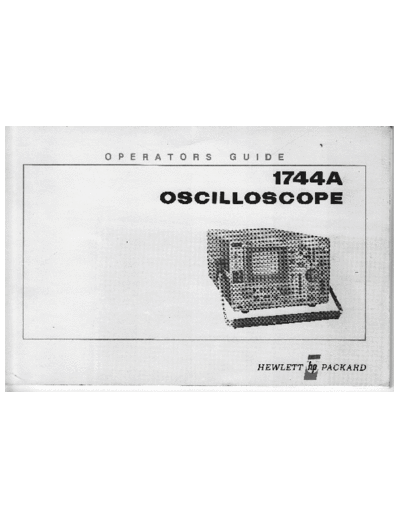

Image preview - the first page of the document
01744-90902 1744A Operators Guice Aug78


>> Download 01744-90902 1744A Operators Guice Aug78 documenatation <<

Text preview - extract from the document
                    le

OPERATORS GUIDE
            1744A
    OSCILLOSCOPE




            HEWLETT PACKARD
                                        SAFETY SUMMARY
The following general safety precautions must be observed during operation of this instrument. Failure to
comply with these precautions or with specific warnings elsewhere in this manual violates safety standards
of design, manufacture, and intended use of the instrument. Hewlett-Packard Company assumes no liability
for the customer's failure to comply with these requirements.
GROUND THE INSTRUMENT.
To minimize shock hazard, the instrument chassis and cabinet must be connected to an electrical ground. The
instrument is equipped with a three-conductor ac power cable. The power cable must either be plugged into
an approved three-contact outlet or used with a three-contact to two-contact adapter with the grounding wire
(green) firmly connected to an electrical ground (safety ground) at the power outlet. The power jack and
mating plug of the power cable meet International Electrotechnical Commission (IEC) safety standards.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE.
Do not operate the instrument in the presence of flammable gases or fumes. Operation of any electrical
instrument in such an environment constitutes a definite safety hazard.

DO NOT REMOVE INSTRUMENT COVERS.
Operating personnel must not remove instrument covers. Component replacement and internal adjustments
must be made by qualified maintenance personnel.Service instructions for this instrument are provided in a
separate Operating and Service Manual.
DANGEROUS PROCEDURE WARNINGS.
Warnings such as the example below, precede potentially dangerous procedures throughout this manual!
Instructions contained in the warnings must be followed.

                                               WARNING

              Dangerous voltages, capable of causing death, are present in this instrument.
                     Use extreme caution when handling, installing or operating.
                                                 ii
                                OPERATORS GUIDE



                                           MODEL 1744A
                                          OSCILLOSCOPE
