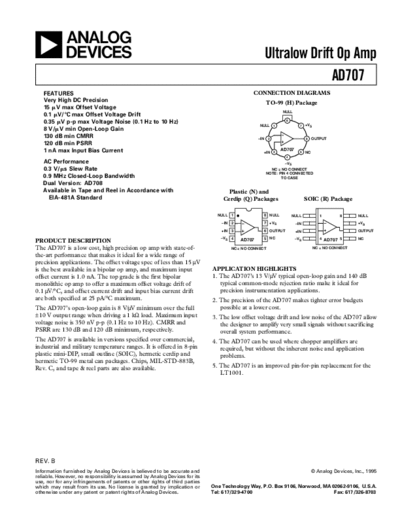

Image preview - the first page of the document



>> Download AD707 documenatation <<

Text preview - extract from the document

a                                                                                                  Ultralow Drift Op Amp
                                                                                                                 AD707
   FEATURES                                                                                   CONNECTION DIAGRAMS
   Very High DC Precision                                                                              TO-99 (H) Package
   15 V max Offset Voltage
                                                                                                              NULL
   0.1 V/ C max Offset Voltage Drift
                                                                                                                8
   0.35 V p-p max Voltage Noise (0.1 Hz to 10 Hz}                                                NULL 1                 7   +VS
   8 V/ V min Open-Loop Gain
   130 dB min CMRR
