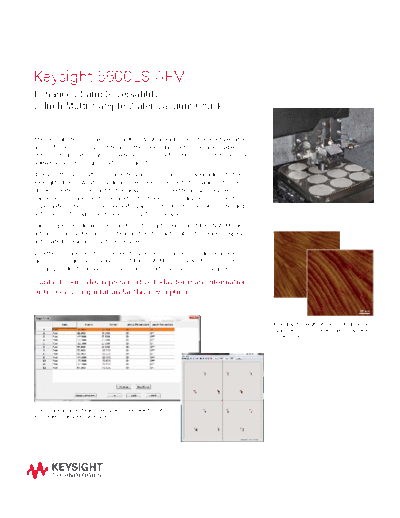

Image preview - the first page of the document



>> Download 5600LS AFM Enhanced Sample Versatility_ 2-Inch Multi-Sample Wafer Vacuum Chuck 5991-2015EN c20140723 [2] documenatation <<

Text preview - extract from the document

Keysight 5600LS AFM
Enhanced Sample Versatility:
2-Inch Multi-Sample Wafer Vacuum Chuck


The Keysight Technologies, Inc. 5600 LS AFM, already one of the most versatile
atomic force microscopy systems on the market (with a fully programmable
200 mm stage that allows complete access over a full 200 mm in X/Y travel), has
added yet another highly useful configuration.

A new 2" (52 mm) multi-sample wafer vacuum chuck can now be added to the
Keysight 5600 LS AFM, providing system users the ability to image up to one
dozen 2" wafers. Important to the growing LED market (e.g., GaN devices on
sapphire substrates) and to a variety of optoelectronics devices on InP and
GaAs wafers, this multi-sample wafer vacuum chuck option allows unattended
automation of imaging and measuring up to 12 samples.

Ideal for process development and monitoring, the Keysight 5600 LS AFM has
a high-precision 200 mm X/Y stage and built-in automation to create complex
automated imaging on multiple samples.

Whether you are monitoring an existing process or working to deine a new
generation of devices, the Keysight 5600 LS AFM offers powerful tools and
imaging modes to deliver uncompromising performance on your samples.

Contact your sales representative today for more information
or to receive a quotation for this new option



                                                                                  Topography images of GaN ilms grown on
                                                                                  sapphire. Bottom image shows local defects
                                                                                  circled in red.




The programmable stage allows user to pre-select points on
each wafer that are to be imaged.
