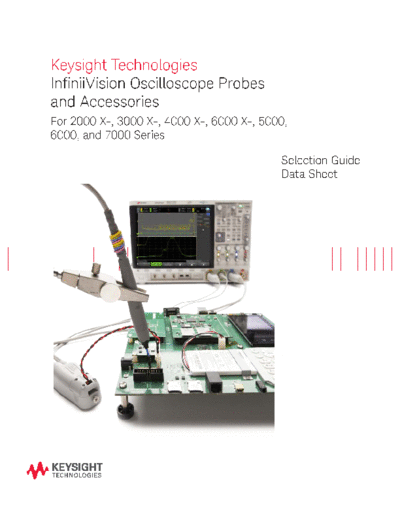

Image preview - the first page of the document
![5968-8153EN _ 2005-03-28 _ PDF 700 KB c20141028 [27]](/pics/5c2170cd4a647.gif)
>> Download 5968-8153EN _ 2005-03-28 _ PDF 700 KB c20141028 [27] documenatation <<
Text preview - extract from the document
Keysight Technologies
IniniiVision Oscilloscope Probes
and Accessories
For 2000 X-, 3000 X-, 4000 X-, 6000 X-, 5000,
6000, and 7000 Series
Selection Guide
Data Sheet
02 | Keysight | IniniiVision Oscilloscope Probes and Accessories - Selection Guide Data Sheet
To achieve the best results from your scope, you need the right probes and
accessories for your particular application. That's why Keysight Technologies,
Inc. offers a complete family of innovative probes and accessories for InfiniiVision
oscilloscopes. For the most up-to-date and complete information about Keysight's
accessories, please visit our Web site at: www.keysight.com/find/probes
Table of Contents
Probe Compatibility Table .........................................................................................3
Passive Probes ...........................................................................................................5
High-voltage Passive Probes ....................................................................................7
IniniiMax Active Probes and Accessories .................................................................8
IniniiMode Active Probes and Accessories .............................................................10
High-voltage Differential Active Probes ..................................................................12
Single-ended Active Probes ....................................................................................14
Mixed Signal Oscilloscope Logic Probes ................................................................15
Clamp-on Current Probes .......................................................................................17
High-Sensitivity Current Probes .............................................................................19
Wedge Probe Adapters ...........................................................................................21
Miscellaneous Accessories ......................................................................................22
N2744A T2A Probe Interface Adapter .....................................................................24
Recommended Probes for Low-/Mid-Speed Bus Measurements ..........................25
03 | Keysight | IniniiVision Oscilloscope Probes and Accessories - Selection Guide Data Sheet
Probe Compatibility Table
For ordering information when replacing your probe or probe accessory: Refer directly to the page number listed in the
table of contents for your probe model.
To assist you in selecting the proper probe for your application: Use our probe compatibility table below to ind the probes
that are recommended for use with your 2000 X-, 3000 X-, 4000 X-, 6000 X-, 5000, 6000, and 7000 Series IniniiVision
oscilloscope.
MSO/DSO MSO/DSO MSO/DSO
Probe type Probe model 2000 X1 3000 X 4000 X/6000 X2
Passive probes, N2862B 10:1 150 MHz Recommended Recommended Recommended
page 5 (included in 70/100 MHz models)
N2863B 10:1 300 MHz
(included in 200 MHz models)
N2890A 10:1 500 MHz
(included in 350/500 MHz/1 GHz models)
N2894A 10:1 700 MHz (included in 4000 X models) Compatible Compatible Recommended
N2889A 1:1/10:1 350 MHz Recommended Recommended Recommended
High-voltage passive 10076B 4 kV Recommended Recommended Recommended
probes, page 7
N2771B 30 kV Recommended Recommended Recommended
Differential active probes, 1130A - 1134A 1.5 GHz - 7 GHz Incompatible Recommended Recommended
page 8
N2750A - N2752A 1.5 GHz - 6 GHz Incompatible Recommended Recommended
1141A 200 MHz (use with 1142A) Incompatible Recommended Recommended
N2791A 25 MHz Recommended Recommended Recommended
N2891A 70 MHz Recommended Recommended Recommended
N2790A 100 MHz (with AutoProbe) Incompatible Recommended Recommended
N2792A 200 MHz Incompatible Recommended Recommended
N2818A 200 MHz (with AutoProbe) Incompatible Recommended Recommended
N2793A 800 MHz Incompatible Recommended Recommended
N2819A 800 MHz (with AutoProbe) Incompatible Recommended Recommended
Single-ended active probes, N2795A 1 GHz (with AutoProbe) Incompatible Recommended Recommended
page 14
N2796A 2 GHz (with AutoProbe) Incompatible Recommended Recommended
N2797A 1.5 GHz (with AutoProbe) Incompatible Recommended Recommended
MSO logic probes, 01650-61607 16-channel Incompatible Recommended Recommended
page 15
N6459-60001 8-channel MSO cable Recommended Incompatible Incompatible
(included in 2000 X-Series MSOs)
N6450-60001 16-channel MSO cable Incompatible Recommended Recommended
(included in 3000 and 4000 X-Series MSOs)
N2756A 16-Channel MSO cable Incompatible Recommended Recommended
(included in 6000 X-Series MSOs)
Current probes, 1146B 100 kHz Recommended Recommended Recommended
page 17
N2780B 2 MHz (use with N2779A) Recommended Recommended Recommended
N2781B 10 MHz (use with N2779A) Recommended Recommended Recommended
N2782B 50 MHz (use with N2779A) Recommended Recommended Recommended
N2783B 100 MHz (use with N2779A) Recommended Recommended Recommended
1147B 50 MHz (with AutoProbe) Incompatible Recommended Recommended
N2893A 100 MHz (with AutoProbe) Incompatible Recommended Recommended
N2820A 3 MHz/50 uA High Sensitivity, Incompatible Recommended Recommended
2 channel (with AutoProbe)
N2821A 3 MHz/50 uA High Sensitivity, Incompatible Recommended Recommended
1 channel (with AutoProbe)
1. The 2000 X-Series does not support AutoProbe interface active probes.
2. The 4000 X- and 6000 X-Series comes with the Ininiium AutoProbe interface for higher probe power support.
04 | Keysight | IniniiVision Oscilloscope Probes and Accessories - Selection Guide Data Sheet
Probe Compatibility Table (continued)
MSO/DSO6000A 4
MSO/ 300 MHz - 1 GHz
DSO5000A DSO5000A DSO6000A 4 MSO/DSO7000A/B
Probe type Probe model 100 MHz 300 - 500 MHz 100 MHz 100 MHz - 1 GHz
Passive probes N2863B 10:1 300 MHz Recommended Recommended Recommended Compatible
page 5 (included in 5000 Series
100/300 MHz)
10070D 1:1 20 MHz Recommended Recommended Recommended Recommended
10073D 10:1 500 MHz (included in Compatible Recommended Compatible Recommended
6000/7000 Series 300 MHz to
1 GHz and 5000 Series 500 MHz)
10074D 10:1 150 MHz Recommended Compatible Recommended Compatible
(included in 6000 Series 100 MHz)
N2873A 10: 1 500 MHz Recommended Recommended Compatible Recommended
(optional to 7000B)
High-voltage 10076B 4 kV Recommended Recommended Recommended Recommended
passive probes
page 7 N2771B 30 kV Recommended Recommended Recommended Recommended
Differential 1130A 1.5 GHz1 Compatible Recommended Incompatible Recommended
active probes
page 8 N2750A 1.5 GHz Incompatible Incompatible Incompatible Incompatible
1141A 200 MHz (use with 1142A) Compatible Recommended Compatible Recommended
N2791A 25 MHz Recommended Recommended Recommended Recommended
N2891A 70 MHz Recommended Recommended Recommended Recommended
N2790A 100 MHz (with AutoProbe) Recommended Recommended Incompatible Recommended
N2792A 200 MHz Recommended Recommended Incompatible Recommended
N2818A 200 MHz (with AutoProbe) Incompatible Incompatible Incompatible Incompatible
N2793A 800 MHz Recommended Recommended Incompatible Recommended
N2819A 800 MHz (with AutoProbe) Incompatible Incompatible Incompatible Incompatible
Single-ended N2795A 1 GHz (with AutoProbe) Recommended Recommended Incompatible Recommended
active probes
page 14 N2796A 2 GHz (with AutoProbe) Recommended Recommended Incompatible Recommended
N2797A 1.5 GHz (with AutoProbe) Incompatible Incompatible Incompatible Incompatible
Mixed signal 01650-61607 16-channel Incompatible Incompatible Recommended Recommended
oscilloscope
logic probes2 N6450-60001 2x8-channel Incompatible Incompatible Recommended Recommended
page 15 (included in MSO6000A,
MSO7000A/B)
Current probes 1146B 100 kHz Recommended Recommended Recommended Recommended
page 17
N2780B 2 MHz (use with N2779A) Recommended Recommended Recommended Recommended
N2781B 10 MHz (use with N2779A) Recommended Recommended Recommended Recommended
N2782B 50 MHz (use with N2779A) Recommended Recommended Recommended Recommended
N2783B 100 MHz (use with N2779A) Recommended Recommended Recommended Recommended
1147B 50 MHz (with AutoProbe) Recommended Recommended Incompatible Recommended
N2893A 100 MHz (with AutoProbe) Recommended Recommended Incompatible Recommended
N2820A 3 MHz/50 uA High Sensitivity, Incompatible Incompatible Incompatible Incompatible
2 channel (with AutoProbe)
N2821A 3 MHz/50 uA High Sensitivity, Incompatible Incompatible Incompatible Incompatible
1 channel (with AutoProbe)
1. The 1130A probe ampliier supports both single- and differential-ended measurements. Higher bandwidth IniniiMax probe model 1131A, 1132A, and
1134A are also supported by 3000 X-, 4000 X-, 6000 X-, 5000, 6000 300 MHz - 1 GHz models and, 7000 Series.
2. Recommended for IniniiVision MSOs only.
