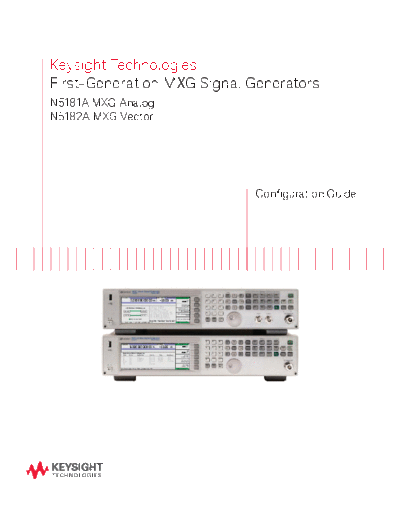

Image preview - the first page of the document



>> Download 5989-5485EN First-generation MXG Signal Generators - Configuration Guide c20140828 [10] documenatation <<

Text preview - extract from the document

Keysight Technologies
First-Generation MXG Signal Generators
N5181A MXG Analog
N5182A MXG Vector




                             Configuration Guide
This guide is to assist in the ordering process for the first-generation
MXG analog and vector signal generators.

Migrate to the new Keysight Technologies, Inc. EXG X-Series
Signal generator and generate true performance                                                                        You CAN Upgrade!
The new EXG offers more capability than the first-generation MXG, including low frequency                             Options can be added
coverage to 9 kHz, reduced spurious levels, larger waveform memory, wider modulation                                  after initial purchase.
bandwidth and robust reverse power protection. New features include real-time signal
generation and a built-in, multi-function generator. For more information, visit                          www.keysight.com/find/N5181A_upgrades
www.keysight.com/find/X_Series_SG


Keysight N5181A MXG analog configuration steps
Step 1. Choose model number
Model      Description                                                                                        Matching EXG options
                                                                                                              For more information go to
                                                                                                              www.keysight.com/find/exg
N5181A     First-generation MXG analog signal generator                                                       N5171B

Step 2. Choose one frequency option (required)
Option     Description                                               Not compatible       Upgrade             Matching EXG options
                                                                                                              For more information go to
                                                                                                              www.keysight.com/find/exg
501        Frequency range from 100 kHz to 1 GHz                     503,506,N5161A       No                  N5171B-501 (9 kHz to 1 GHz)
503        Frequency range from 100 kHz to 3 GHz                     501,506              No                  N5171B-503 (9 kHz to 3 GHz)
506        Frequency range from 100 kHz to 6 GHz                     503,506              No                  N5171B-506 (9 kHz to 6 GHz)

Step 3. Choose performance enhancement options
Option      Description                                                  Not compatible    Upgrade             Matching EXG options
                                                                                                               For more information go to
                                                                                                               www.keysight.com/find/exg
UNZ         Fast switching                                                                 Yes 2               N5171B-UNZ
UNT         AM, FM, phase modulation                                                       Yes 2               N5171B-UNT
1EQ         Low power (<
