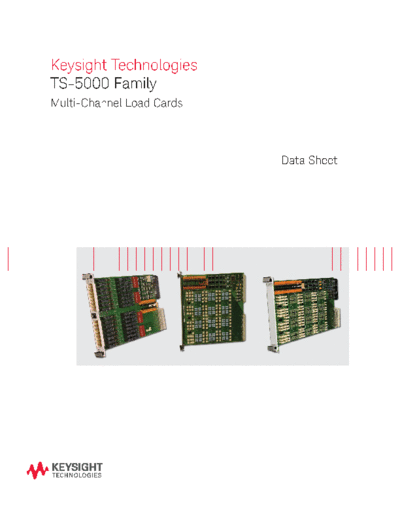

Image preview - the first page of the document
![5989-5822EN TS-5000 Family Multi-Channel Load Cards c20140829 [7]](/pics/5c21729eca908.gif)
>> Download 5989-5822EN TS-5000 Family Multi-Channel Load Cards c20140829 [7] documenatation <<
Text preview - extract from the document
Keysight Technologies
TS-5000 Family
Multi-Channel Load Cards
Data Sheet
Figures 1, 2 and 3 below exhibit Keysight Technologies, Inc. TS-5000 family load cards are a cost-effective and
circuit diagrams on how single, reliable set of multi-channeled load cards designed speciically for automotive
dual and quad-load load cards functional testing.
function respectively.
It offers a wide range of load cards with up to 48 addressable channels, covering
from low resistance to high current. The high current load cards offer lyback
protection while utilizing reliable reed relays with power bus to supply power to load.
The TS-5000 family offers single, dual and quad-load load cards, each allowing
you to connect to internal and externally deined load values.
The multiple types of load cards offered are categorized as follows:
Figure 1. Single-load
Single-Load Load Cards
E6175A: 8-channel, single-load
E6176A: 16-channel, single-load
E6177A: 24-channel, single-load
E6177B: 24-channel, single-load
E6178A: 8-channel, single-load
Dual-Load Load Cards
N9377A: 16-channel, dual-load
N9379A: 48-channel, dual-load
Figure 2. Dual-load
Quad-Load Load Card
N9378A: 24-channel, quad-load
The TS-5000 family load cards work well with Keysight E6198 programmable
Switch/Load Unit (SLU), with up to 21 slots of optional Keysight plug in cards.
This programmable SLU can also be used for instrumentation switching, as well
as switching power supply and loads to the electronic control module (ECM).
With the TS-5000 family load cards, your test engineers can choose their own
load devices for any speciic testing requirement that they may have.
A lexibility like this allows the application of loads that are more than
just resistors, for example, reactive loads with inductors or capacitors
Figure 3. Quad-load
can also be itted for an ECM application that requires emulation.
The TS-5000 family load cards also have the ability to provide lyback
protection for high current handling.
02
General Speciications
Keysight Load Cards Speciications
Function E6175A E6176A E6177A E6177B E6178A N9377A N9378A N9379A
Number of 8 16 24 24 8 16, 24, 48,
channels dual-load quad-load dual-load
(maximum)
Number of 4 16 24 24 8 16 24 48
channels -
unshared relays
Maximum current 7.5 A 7.5 A 3A 3A 30 A 7.5 A 2A 2A
per channel (15 A peak) (15 A peak) (15 A peak)
Current measuring Yes Yes No Yes No Yes No No
with sense resistor
Current measuring Yes No No No Yes No No No
with current
transducer
Flyback protection Yes Yes No No Yes Yes No No
available (user
installed)
Engineered for Inductive Common Low Low High High current Low current Low current
application load load current current current dual-load quad-load quad-load
03
Switching Speciications
Keysight Single-Load Load Cards Speciications
Function E6175A E6176A E6177A & E6177B E6178B
Path resistance from 0.25 maximum 0.4 maximum 0.5 maximum 0.030 typical,
power bus to load card 0.075 maximum
connect
Load path relay 10/8 msec typical, 10/8 msec typical, 3.3/2.4 msec typical, 15/10 msec typical,
operate/release time 16/10 msec maximum, 16/10 msec maximum, 8/8 msec maximum, 20 cps maximum
30 cps maximum 30 cps maximum 10 cps maximum without load, 6 cpm
maximum with
rated load
Peak voltage to earth 60 V continuous 60 V continuous 60 V continuous 60 V continuous
500 V maximum 500 V maximum 500 V maximum
transient, non-switching transient, non-switching transient, non-switching
(delays to < 60 V in (delays to < 60 V in (delays to < 60 V in
200 mS) 200 mS) 200 mS)
Load carry/switching 7.5 A maximum non- 7.5 A maximum non- 3 A maximum 30 A maximum (1)
current (per channel) switching, continuous switching, continuous
Load carry peak current 15 A maximum, 15 A maximum, 6 A maximum, 200 A maximum,
(non-switching) (< 100 msec, < 2% duty (< 100 msec, < 2% duty (< 100 msec, < 2% duty (< 100 mS, < 2%
cycle) cycle) cycle) duty cycle (1))
Load switching power 150 W maximum, 150 W maximum, 60 W maximum, 500 W maximum @
resistive load resistive load resistive load 25 Vdc maximum
resistive load;
100 W maximum @
40 Vdc maximum
resistive load
Load switching voltage 60 V maximum 60 V maximum 60 V maximum 40 V maximum, V*I
not to exceed load
switching power (2)
Minimum permissible 1 mA, 1 V 1 mA, 1 V 10 uA, 10 mV DC N/A
load
Basic current sense 0.1% maximum 0.1% maximum 0.1% maximum 0.1% maximum
accuracy with standard (for E6177B only)
0.05 W sense resistor
(1) One channel at a time. Special accessories required to support multi-channel 30 A load switching at any one time.
(2) Exclusive of load
04
Keysight Multi-Load Load Cards Speciications
Function N9377A N9378A N9379A
Switch topology 16-channel / 2 loads per 24-channel / 4 loads per 48-channel / 2 loads per
channel, off-board loads channel with common, channel with common,
on-board loads on-board loads
Path resistance channel to N/A 0.130 maximum 0.300 maximum
common
Path resistance from power 0.4 maximum 0.5 maximum 0.5 maximum
bus to load card connect
Load path relay operate/ 10/5 msec maximum, 4/4 msec maximum, 4/4 msec max,
release time 30 cps maximum 10 cps maximum 10 cps maximum
Peak voltage to earth 60 V continuous 60 V continuous 60 V continuous
500 V maximum transient, 500 V maximum transient, 200 V maximum transient,
non-switching (delays to non-switching (delays to non-switching (delays to
< 60 V in 200 mS) < 60 V in 200 mS) < 60 V in 200 mS)
Load carry/switching current 7.5 A maximum non-switching, 2 A maximum 2 A maximum
(per channel) continuous
Load carry peak current 15 A maximum, non-switching 1 A maximum 1 A maximum
(< 100 msec, < 2% duty cycle)
Load switching power 150 W maximum, resistive load N/A N/A
Load switching voltage 60 V maximum 30 V maximum 30 V maximum
(relay switching) (relay switching)
Minimum permissible load 10 mA, 5 V 10 uA, 10 mV DC 10 uA, 10 mV DC
Basic current sense accuracy 0.1% maximum N/A N/A
with standard 0.05 sense
resistor
Basic current sense accuracy 0.2% + 30 mA N/A N/A
with different ampliier
engaged (Vcm = 0 V)
Basic current sense accuracy 0.2% + 100 mA N/A N/A
with different ampliier
engaged (Vcm = 16 V)
Isense differential ampliier 500 kHz typical N/A N/A
3 dB bandwidth
Isense differential ampliier 40 A/uS typical N/A N/A
slew rate
Power dissipation, individual N/A 2 W maximum, each load 2 W maximum, each load
load mounted on load card
Average power for loads N/A 20 W maximum total, per card 20 W maximum total, per card
mounted on load card
(1) One channel at a time. Special accessories required to support multi-channel 30 A load switching at any one time.
(2) Exclusive of load
05
Safety & CE Compliance
Safety IEC 61010-1 (1990)+A2: 1995/EN61010-1 : 1993+A2 : 1995
CSA C22.2 #1010.1 (1992)
UL 3111
EMC CISPR 11: 1990/EN55011 1991: Group1, Class A
EN50082-1: 1992
IEC 61000-4-2: 1995/: 4kV CD
IEC 61000-4-3: 1995/: 3V/m
IEC 61000-4-4: 1995/: 1kV power line
