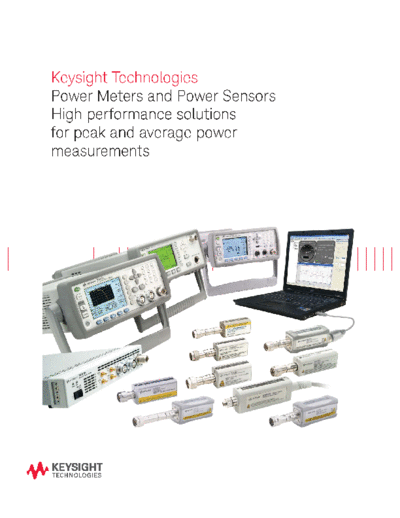

Image preview - the first page of the document
![5989-6240EN Power Meters and Power Sensors - Brochure c20141106 [35]](/pics/5c21733819cf2.gif)
>> Download 5989-6240EN Power Meters and Power Sensors - Brochure c20141106 [35] documenatation <<
Text preview - extract from the document
Keysight Technologies
Power Meters and Power Sensors
High performance solutions
for peak and average power
measurements
02 | Keysight | Power Meters and Power Sensors - High performance solutions for peak and average power measurements
Introducing Keysight Power Meters and Sensors
Reliable, high-performing solutions
Every power meter and sensor from Keysight Technologies, Inc. consistently
delivers great results.
A sure investment for many years to come
Code-compatibility between power meters reduces the need for re-coding. Not
only that, all Keysight power meters are backward-compatible with most legacy
power sensors.
One speciic application: One right solution
Keysight offers a wide selection of power meters and sensors for practically
all application needs--wireless communications, radar pulse measurements,
component test and more.
Global network support
No matter where you are, Keysight is committed to giving you the 24-hour
support you need regarding our products, applications or services.
Explore Keysight Power Solutions Further
Peak Power Measurements and Analysis
For Faster Measurement Speed and Greater Measurement Accuracy ........................................................... 3
Peak and Average Power Measurements
For Wireless and Radar Applications ..................................................................................................................... 6
For Accelerated Production Throughput ............................................................................................................... 7
For Compact ATE Systems ...................................................................................................................................... 9
For Effective Capture of Wireless Signals .......................................................................................................... 12
For Testing of Complex Modulation Formats ..................................................................................................... 16
Average Power Measurements
For Metrology and Calibration Laboratories ....................................................................................................... 19
For Flexible Testing: On the Rack and On the Go .............................................................................................. 20
For Mobile Testing that's Plug-and-Play Easy ................................................................................................... 22
For Improved Power Measurement Throughput ................................................................................................ 25
For Portable RF Measurements ............................................................................................................................ 27
Power Measurement Software
For Easy Monitoring and Troubleshooting........................................................................................................... 28
Power Meters Selection Chart for Wireless Communication ................................................................................ 30
Power Sensors Selection Chart for Wireless Communication ............................................................................... 31
Power Meters and Sensors Compatibility Table ....................................................................................................... 32
Related Keysight Literature ........................................................................................................................................... 34
Warranty Information ..................................................................................................................................................... 35
Contact Keysight ............................................................................................................................................................. 35
03 | Keysight | Power Meters and Power Sensors - High performance solutions for peak and average power measurements
Peak Power Measurements and Analysis
For Faster Measurement Speed and Greater Measurement Accuracy
Keysight 8990B peak power analyzer
The 8990B peak power analyzer
comes with two RF channels and two
video channels and, when used with
a compatible power sensor, measures
the dynamic time-dependent
aspects of RF and microwave power.
Combined with the N1923A/N1924A
wideband power sensors, the 8990B
achieves 5 nanoseconds RF pulse rise
time/fall time. The 8990B provides
internal and external trigger functions
and the peak power analyzer's video
input allows for the simultaneous
analysis of time-domain control
signals.
Designed with both ease of use and
high performance in mind, the 8990B
peak power analyzer does more than Features
