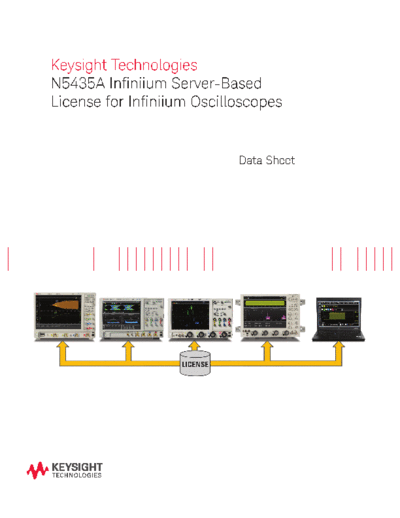

Image preview - the first page of the document



>> Download 5989-6937EN N5435A Infiniium Server-Based License for Infiniium Oscilloscopes - Data Sheet c20140826 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
N5435A Infiniium Server-Based
License for Infiniium Oscilloscopes


                            Data Sheet
Introduction

    The Keysight Technologies, Inc. N5435A Infiniium server-based license allows you to
    move your oscilloscope application license from one Infiniium oscilloscope to another,
    using a license server. Just check out the license from the server when you need it, and
    return it when you are finished with it. You can check out the license in increments of
    days. If you forget to return the licenses, the oscilloscope will automatically return them
    for you when the allotted time expires.

    License files for the N5435A Infiniium server-based license are supported across
    Infiniium Series oscilloscope platforms, as well as the N8900A Infiniium Offline
    oscilloscope analysis software, so you can protect your application software investment.
03 | Keysight | N5435A Infiniium Server-Based License for Infiniium Oscilloscopes - Data Sheet



Infiniium application server license: How it works
The N5435A Infiniium server-based license is ideal for companies with multiple Infiniium
oscilloscopes. You can share license files across oscilloscopes, anywhere in the world.




Figure 1. License server configuration example


To borrow licenses, the oscilloscope needs to be connected to a LAN to access the
license server. Once you obtain the necessary licenses, you do not need to remain
connected to the LAN. Just reconnect when you decide to return your borrowed licenses
to the license server. If you forget to return the license within your borrowing period (in
units of days), that is not a problem. Both the license server and the Infiniium
oscilloscope have their own time counters tracking the valid period for the license. Once
a particular license expires, the license server automatically returns the credit to that
specific license file. At the same time, the Infiniium oscilloscope automatically
loses the license.

Figures 2 to 5 show you the complete flow of borrowing and returning application
software on an Infiniium oscilloscope that is connected to the LAN.




Figure 2: Install Option License dialog box
04 | Keysight | N5435A Infiniium Server-Based License for Infiniium Oscilloscopes - Data Sheet



Infiniium application server license: How it works (continued)
If you already have some node-locked licenses installed on your Infiniium oscilloscope,
that is not a problem. The N5435A Infiniium application server license automatically
populates the list with available server-based licenses that your oscilloscope doesn't
have.




                                                   Figure 6: The return confirmation. Restart your Infiniium oscilloscope to
                                                   finish the process.




                   Figure 3: The License to Borrow menu
                   automatically populates those licenses not
                   already installed on the Infiniium scope.




Figure 4: The confirmation window gives you borrowing                  Figure 5: The License To Return dialog box is populated with
period information. You must restart your Infiniium                    only the server licenses you borrowed. No node-locked
oscilloscope to activate the licenses.                                 licenses are shown in the list.
05 | Keysight | N5435A Infiniium Server-Based License for Infiniium Oscilloscopes - Data Sheet



Which license type is best for you?
There are several different types of Infiniium oscilloscope application software licenses
available from Keysight. Choose the type that works best for your situation:

Server-based licenses are generally recommended for companies that want to share
licenses across multiple Infiniium oscilloscopes and/or the N8900A Infiniium Offline
application.

Node-locked licenses are recommended for teams that want to ensure specific
oscilloscopes retain specific licenses indefinitely.




Figure 7: N5435A server-based licenses can work across Infiniium Series oscilloscopes as well as the N8900A Infiniium Offline application
06 | Keysight | N5435A Infiniium Server-Based License for Infiniium Oscilloscopes - Data Sheet



Key specifications/system requirements
N5435A supports
