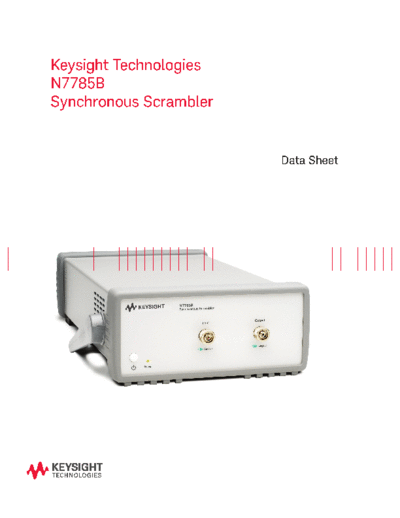

Image preview - the first page of the document



>> Download 5989-8114EN N7785B Synchronous Scrambler - Data Sheet c20140507 [5] documenatation <<

Text preview - extract from the document

Keysight Technologies
N7785B
Synchronous Scrambler


                        Data Sheet
Introduction

     The Keysight Technologies N7785B is a high-speed synchronous scrambler. It contains a polarization con-
     troller plus microcontroller-based driving circuitry. This unit can operate in various modes:

     As a synchronous scrambler, the device switches the SOP of the output signal in a random (pseudo) way.
     Switching of the SOP occurs within a few microseconds.

     The SOP is stable for a predefined time until it again switches to a new SOP.

     An electrical trigger input can be used to synchronize the scrambler with external events.

     As an SOP switch the N7785B allows switching the internal waveplates to user definable angles with very
     high speed and repeatability.

     As a traditional scrambler, the Keysight N7785B varies the output SOP smoothly in a random/pseudo
     random way.

     The unit does not contain any moving parts, and therefore is robust and withstands even rough environmental
     conditions.

     All above-mentioned applications of the N7785B are supported by Keysight's PC software package which
     comes with this instrument.

     Key benefits
